STL14000SWBXG

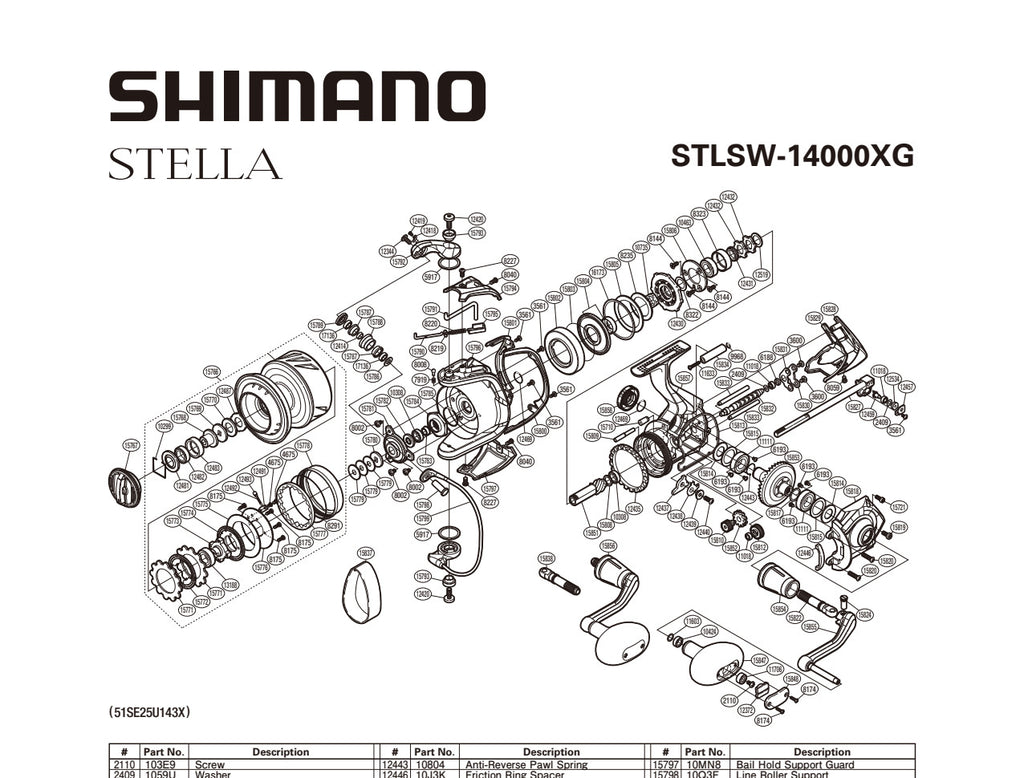

Download Schematic PDF
Select a quantity and click the cart icon to add to cart.
»=INDICATES A PART SUBSTITUTION
| Part Number | Part Description | Price | Quantity | Add To Cart |
|---|---|---|---|---|
| 10KX1 | BALL BEARING MADE IN THAI | $7.38 | ||
| 10BGD | BALL BEARING MADE IN Thailand | $5.72 | ||
| 10PDA | BALL BEARING MADE IN THAILAND | $5.93 | ||
| 103E9 | SCREW | $0.99 | ||
| 105BN | BALL BEARING MADE IN THAILAND | $7.06 | Out Of Stock ETA : 2025/05/28 |
|
| 10KX7 | BALL BEARING MADE IN THAI | $9.98 | ||
| 104K5 | BALL BEARING MADE IN THAILAND | $7.56 | ||
| 10HV3 | WASHER | $0.99 | ||
| 104PN | BALL BEARING MADE IN THAILAND | $5.89 | ||
| 10B97 | HANDLE KNOB SEAL | $0.99 | ||
| 108T1 | HANDLE KNOB I.D. PLATE | $3.29 | ||
| 106V5 | OSCILLATING PAWL | $3.24 | ||
| 10BXW | SPOOL WASHER | $0.99 | ||
| 1077Q | CLICK SPRING | $0.99 | ||
| 10BGC | BALL BEARING MADE IN JAPAN | $6.82 | ||
| 102KE | HANDLE KNOB | $17.01 | ||
| 10GAG | BEARING SPACER | $1.55 | ||
| 108W9 | O RING | $0.99 | ||
| 1059U | WASHER | $0.99 | Out Of Stock ETA : 2025/07/25 |
|
| 10MGG | BEARING SCREW | $0.99 | ||
| 10LQ1 | OIL SSRO-01 CNTNR (4.5g) | $2.21 | ||
| 10820 | WORM SHAFT | $6.16 | Out Of Stock ETA : 2025/06/10 |
|
| 10344 | DRAG WASHER | $3.29 | ||
| 10KUU | LINE ROLLER | $18.71 | ||
| 10JV4 | OSCILLATING SLIDER BUSHING | $1.22 | ||
| 107RM | LINE ROLLER BUSHING | $1.13 | ||
| 103NM | HANDLE KNOB SCREW | $0.99 | ||
| 10Q3F | LINE ROLLER SUPPORT | $9.92 | ||
| 10LSC | SCREW | $0.99 | ||
| 10K46 | SCREW | $2.91 | ||
| 10K30 | NUT LOCK PLATE | $0.99 | ||
| 10HBL | IDLE GEAR | $10.43 | ||
| 10GFD | WASHER | $0.99 | ||
| 10F8C | HANDLE SHAFT (LEFT) | $17.72 | ||
| 10CG0 | O RING | $0.99 | ||
| 109UW | LINE BAND M (ACCESSORY) | $4.04 | ||
| 1072S | MAIN SHAFT SPACER | $4.47 | ||
| 103HM | SCREW | $0.99 | ||
| 10PVN | SCREW | $1.08 | ||
| 10PVM | SCREW | $1.08 | ||
| 10NKP | REAR PROTECTOR | $11.94 | ||
| 10FHU | HANDLE SHAFT (RIGHT) (ACC) | $17.72 | ||
| 10CD8 | BODY SEAL | $8.55 | ||
| 10C19 | DRAG WASHER | $24.86 | ||
| 10AYL | REAR PROTECTOR COLLAR | $0.99 | ||
| 10A6N | SCREW | $1.18 | ||
| 109ZQ | DRAG CLICK RATCHET | $1.18 | ||
| 109ZN | CLICK SPRING HOLDER | $1.18 | ||
| 108WP | O RING | $0.99 | ||
| 108WD | O RING | $1.18 |
