CTCNQ201

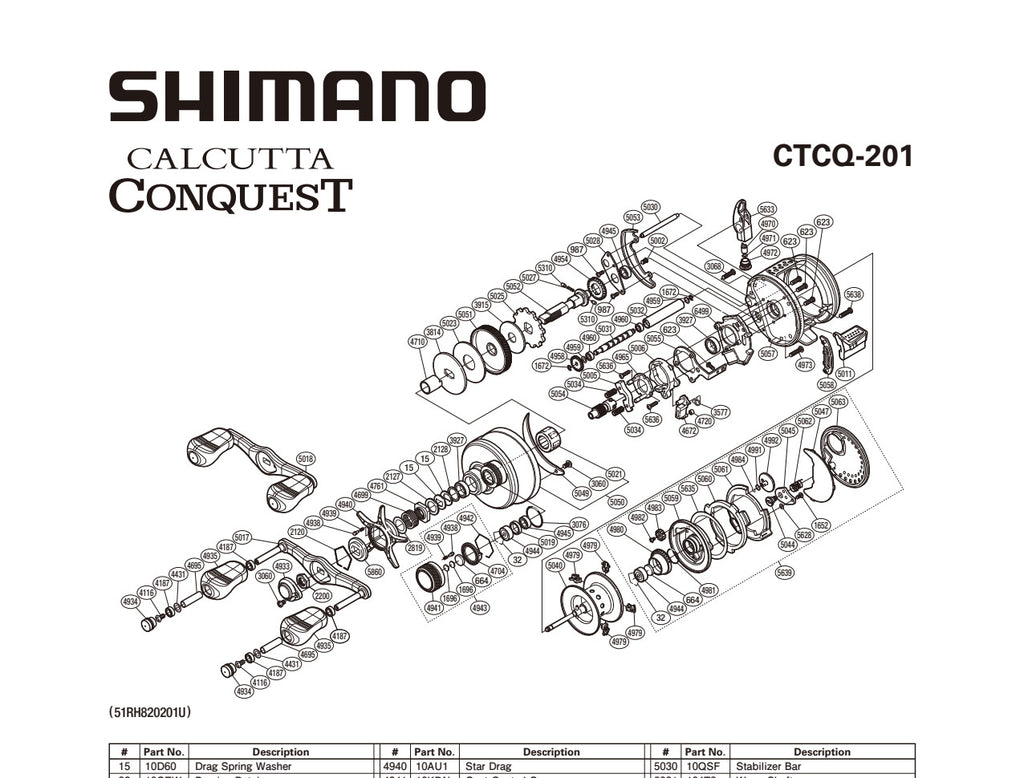

Download Schematic PDF
Select a quantity and click the cart icon to add to cart.
»=INDICATES A PART SUBSTITUTION
| Part Number | Part Description | Price | Quantity | Add To Cart |
|---|---|---|---|---|
| BNT1696 | CAST CONTROL SPACER (B) | $0.99 | ||
| BNT3927 | BALL BEARING MADE IN JAPAN | $4.28 | ||
| BNT4692 | B-100 OIL (ACCESSORY) | $3.29 | ||
| BNT0032 | BEARING RETAINER | $0.99 | ||
| BNT1672 | E LOCK | $0.99 | ||
| BNT0015 | DRAG SPRING WASHER | $0.99 | ||
| BNT5310 | IDLE GEAR PIN | $0.99 | ||
| BNT0664 | SPACER (B) | $0.99 | ||
| BNT2127 | STAR DRAG SPACER | $2.49 | ||
| BNT2200 | HANDLE NUT | $1.22 | ||
| BNT2128 | BEARING WASHER | $0.99 | ||
| BNT0623 | DIAL CASE SCREW | $0.99 | ||
| BNT4981 | O RING | $0.99 | ||
| BNT2120 | CLICK PLATE RETAINER | $0.99 | ||
| BNT4431 | WASHER | $0.99 | ||
| BNT5021 | ROLLER CLUTCH BEARING | $26.70 | ||
|
BNT2121
>> BNT5860 |
STAR DRAG CLICK | $0.99 | ||
| BNT4116 | SCREW | $0.99 | ||
| BNT5002 | SCREW | $0.99 | ||
| BNT4945 | BALL BEARING 5X9X3 ARB | $8.46 | ||
| BNT4939 | CLICK SPRING | $0.99 | ||
| BNT3060 | HANDLE NUT PLATE SCREW | $2.40 | ||
| BNT4938 | CLICK PIN | $0.99 | ||
| BNT4720 | CLUTCH PAWL BUSHING | $0.99 | ||
| BNT4959 | WASHER | $0.99 | ||
| BNT4699 | STAR DRAG SPRING | $1.41 | ||
| BNT4187 | BALL BEARING MADE IN THILAND | $4.70 | ||
| BNT3915 | DRAG WASHER | $2.96 | ||
| BNT3076 | O RING | $0.99 | ||
| BNT4954 | IDLE GEAR | $1.50 | ||
| BNT4935 | HANDLE KNOB | $4.47 | ||
| BNT5633 | LINE GUIDE | $59.83 | ||
| BNT5049 | SET PLATE STICKER | $0.99 | ||
| BNT5034 | YOKE SPRING | $0.99 | ||
| BNT5017 | HANDLE SHANK ASSEMBLY | $44.04 | ||
| BNT4979 | BRAKE SHOE M | $0.99 | ||
| BNT4970 | LINE GUIDE PAWL | $6.44 | ||
| BNT4941 | CAST CONTROL CAP | $20.77 | ||
| BNT4761 | STAR DRAG NUT | $3.76 | ||
| BNT4695 | HANDLE KNOB PIPE | $1.88 | ||
| BNT3814 | KEY WASHER | $5.97 | ||
| BNT3068 | LEFT SIDE PLATE SCREW (A) | $2.82 | ||
|
BNT0987
>> RD 6010 |
NUT LOCK SCREW | $0.99 | ||
|
BNT1652
>> TGT1541 |
SCREW | $0.99 | ||
| BNT5639 | RIGHT SIDE PLATE ASSEMBLY | $171.32 | ||
| BNT5638 | SCREW | $0.99 | ||
| BNT5636 | SCREW | $0.99 | ||
| BNT5635 | WASHER | $0.99 | ||
| BNT5628 | WASHER | $0.99 | ||
| BNT5063 | RIGHT SIDE PLATE | $71.25 | ||
| BNT5062 | DAMPER SPRING | $0.99 | ||
| BNT5061 | SIDE PLATE CAM LEVER | $0.99 | ||
| BNT5060 | BRAKE CASE CAM | $0.99 | ||
| BNT5059 | BRAKE CASE | $40.09 | ||
| BNT5058 | CLUTCH BAR GUIDE | $0.99 | ||
| BNT5057 | ONE-PIECE FRAME | $310.20 | ||
| BNT5056 | CLUTCH GUARD | $2.96 | ||
| BNT5055 | CLUTCH PLATE | $1.97 | ||
| BNT5054 | PINION GEAR | $19.79 | ||
| BNT5053 | FRAME SHIELD | $13.35 | ||
| BNT5052 | DRIVE SHAFT | $23.74 | ||
| BNT5051 | DRIVE GEAR | $21.29 | ||
| BNT5050 | LEFT SIDE PLATE | $214.70 | ||
| BNT5047 | B SIDE PLATE SEAL | $1.50 | ||
| BNT5045 | DAMPER BUSH(A) | $1.97 | ||
| BNT5044 | B SIDE PLATE INSERT | $9.92 | ||
| BNT5040 | SPOOL ASSEMBLY | $93.48 | ||
| BNT5032 | LEVEL WIND GUARD | $20.30 | ||
| BNT5031 | WORM SHAFT | $9.40 | ||
| BNT5030 | STABILIZER BAR | $4.47 | ||
| BNT5028 | DRIVE SHAFT RETAINER | $2.49 | ||
| BNT5027 | IDLE GEAR SPRING | $0.99 | ||
| BNT5025 | ANTI-REVERSE RATCHET | $3.48 | ||
| BNT5023 | DRAG WASHER | $9.92 | ||
| BNT5019 | BEARING SPACER | $0.99 | ||
| BNT5018 | HANDLE ASSEMBLY | $98.94 | ||
| BNT5011 | CLUTCH LEVER | $10.90 | ||
| BNT5006 | CLUTCH CAM | $0.99 | ||
| BNT5005 | YOKE | $0.99 | ||
| BNT4992 | BR DIAL | $63.31 | ||
| BNT4991 | WASHER | $0.99 | ||
| BNT4984 | O RING | $0.99 | ||
| BNT4983 | BR DIAL GEAR | $1.50 | ||
| BNT4982 | SCREW | $0.99 | ||
| BNT4980 | BRAKE PIPE GEAR | $32.15 | ||
| BNT4973 | SCREW | $7.43 | ||
| BNT4972 | PAWL CAP | $11.37 | ||
| BNT4971 | WASHER | $0.99 | ||
| BNT4965 | CLUTCH CAM RETAINER | $2.96 | ||
| BNT4960 | BALL BEARING | $14.24 | ||
| BNT4958 | IDLE GEAR | $1.50 | ||
| BNT4944 | BALL BEARING | $12.88 | ||
| BNT4943 | CAST CONTROL CAP ASSEMBLY | $38.59 | ||
| BNT4942 | CAST CONTROL CLICK HOLDER | $0.99 | ||
| BNT4940 | STAR DRAG | $29.70 | ||
| BNT4934 | HANDLE KNOB SEAL | $6.44 | ||
| BNT4933 | HANDLE NUT PLATE | $24.72 | ||
| BNT4710 | ROLLER CLUTCH INNER TUBE | $5.17 | ||
| BNT4704 | CAST CONTROL CLICK PLATE | $0.99 | ||
| BNT4672 | CLUTCH PAWL | $5.17 | ||
| BNT3577 | CLUTCH PAWL SPRING | $0.99 | ||
| BNT2819 | WORM SPACER | $0.99 |
