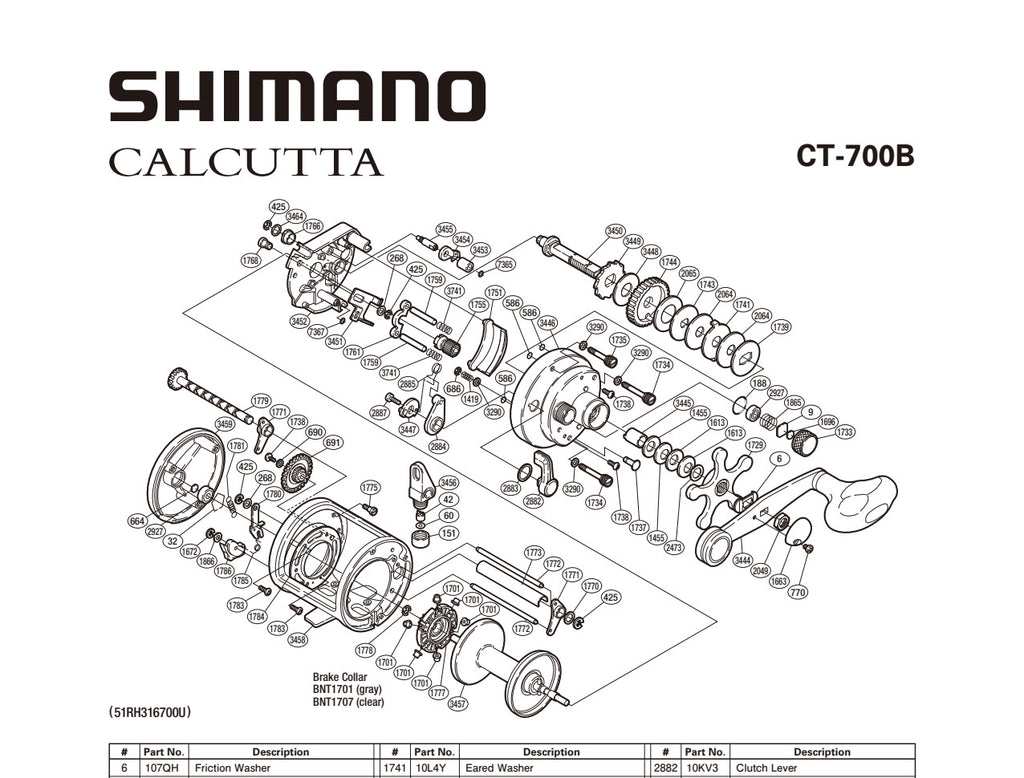

CT700B
Download Schematic PDF
Select a quantity and click the cart icon to add to cart.
»=INDICATES A PART SUBSTITUTION
| Part Number | Part Description | Price | Quantity | Add To Cart |
|---|---|---|---|---|
| BNT1696 | CAST CONTROL SPACER (B) | $0.99 | ||
| BNT0770 | HANDLE NUT PLATE SCREW | $0.99 | ||
| BNT0686 | E LOCK | $0.99 | ||
| BNT0032 | BEARING RETAINER | $0.99 | ||
| BNT1672 | E LOCK | $0.99 | ||
| BNT0060 | SPACER (OPTIONAL) | $0.99 | ||
| BNT2927 | BALL BEARING | $8.72 | ||
| BNT0151 | PAWL CAP | $1.13 | Out Of Stock ETA:2022/10/25 |
|
| BNT1663 | HANDLE NUT PLATE | $0.99 | ||
| BNT0425 | CLUTCH BUTTON LOCK | $0.99 | ||
| BNT0188 | O-RING | $0.99 | ||
| BNT0664 | SPACER (B) | $0.99 | ||
| BNT3290 | WASHER | $0.99 | ||
| BNT3444 | HANDLE ASSEMBLY | $24.66 | ||
| BNT1455 | DRAG SPRING WASHER | $1.23 | ||
| BNT1613 | DRAG SPRING WASHER (L) | $1.36 | ||
| BNT0586 | BOLT RETAINER | $0.99 | ||
| BNT0691 | IDLE GEAR B | $0.99 | ||
| BNT1419 | YOKE SPRING | $0.99 | ||
| BNT2887 | CLUTCH LEVER SCREW | $1.69 | ||
| BNT2049 | HANDLE NUT | $1.88 | ||
| BNT3450 | DRIVE SHAFT | $7.90 | ||
| BNT0690 | LOCK WASHER | $0.99 | ||
| BNT0006 | FRICTION WASHER (A) | $0.99 | ||
| BNT2473 | STAR DRAG SPACER | $0.99 | ||
| BNT1733 | CAST CONTROL CAP | $3.34 | ||
| BNT2884 | ECCENTRIC CAM BUSHING | $0.99 | ||
| BNT1866 | SPACER | $0.99 | ||
| BNT1755 | PINION GEAR | $14.81 | ||
| BNT1734 | RIGHT SIDE PLATE BOLT A | $1.46 | ||
| BNT3456 | LINE GUIDE | $5.08 | ||
| BNT2064 | DRAG WASHER (B) | $8.51 | ||
| BNT2065 | DRAG WASHER (F) | $8.51 | ||
| BNT1779 | WORM SHAFT | $6.91 | ||
| BNT1773 | LEVEL WIND GUARD | $1.55 | ||
| BNT1766 | DRIVE SHAFT BUSHING | $1.55 | ||
| BNT1744 | DRIVE GEAR | $13.97 | ||
|
BNT0009
>> TGT0182 |
CAST CONTROL SPACER | $0.99 | ||
| BNT3741 | YOKE SPRING | $0.99 | ||
|
BNT3465
>> TGT0348 |
SPACER (C) | $0.99 | ||
| BNT3464 | LINE SAFETY GUARD SPACER B | $0.99 | ||
| BNT3459 | LEFT SIDE PLATE | $31.59 | ||
| BNT3458 | ONE-PIECE FRAME | $105.59 | ||
| BNT3455 | SET PLATE INSERT | $2.26 | ||
| BNT3457 | SPOOL ASSEMBLY | $38.81 | ||
| BNT3454 | ANTI-REVERSE PAWL | $2.26 | ||
| BNT3453 | ANTI-REVERSE PAWL COLLAR | $1.13 | ||
| BNT3452 | SET PLATE A | $20.07 | ||
| BNT3451 | YOKE PLATE | $2.26 | ||
| BNT3447 | CLUTCH CAM | $2.87 | ||
| BNT3449 | ANTI-REVERSE RATCHET | $1.69 | ||
| BNT3448 | DRAG WASHER | $8.55 | ||
| BNT3446 | RIGHT SIDE PLATE | $48.97 | ||
| BNT3445 | ROLLER CLUTCH INNER TUBE | $6.30 | ||
| BNT2885 | CLUTCH SPRING | $0.99 | ||
| BNT2882 | CLUTCH LEVER | $6.82 | ||
| BNT2883 | SMOOTHER | $0.99 | ||
| BNT1865 | SPOOL TENSION SPRING | $0.99 | ||
| BNT1786 | CLICK SWITCH | $1.22 | ||
| BNT1784 | SET PLATE (B) | $12.88 | ||
| BNT1785 | CLICK SWITCH SPRING | $0.99 | ||
| BNT1781 | CLICK SPRING | $0.99 | ||
|
BNT1783
>> TGT0505 |
RIGHT SIDE PLATE SCREW (A) | $0.99 | ||
| BNT1780 | CLICK PAWL | $1.83 | ||
| BNT1778 | E LOCK | $0.99 | ||
| BNT1777 | CLICK GEAR ASSEMBLY | $5.83 | ||
| BNT1775 | LEFT SIDE PLATE BOLT | $1.03 | ||
| BNT1772 | STABILIZER BAR | $0.99 | ||
| BNT1771 | WORM BUSHING | $0.99 | ||
| BNT1770 | WORM SHAFT SPACER | $0.99 | ||
| BNT1768 | CLUTCH BUTTON GUIDE PIN | $0.99 | ||
| BNT1761 | YOKE | $1.46 | ||
| BNT1759 | YOKE PIN | $0.99 | ||
| BNT1751 | PLASTIC GEAR PLATE | $3.48 | ||
| BNT1743 | KEY WASHER E | $0.99 | ||
| BNT1741 | EARED WASHER | $0.99 | ||
| BNT1739 | KEY WASHER | $1.03 | ||
| BNT1738 | MULTI-PURPOSE SCREW B | $0.99 | ||
| BNT1737 | PRESSURE RIVET | $1.83 | ||
| BNT1735 | RIGHT SIDE PLATE BOLT (B) | $1.32 | ||
| BNT1729 | STAR DRAG | $14.85 | ||
| BNT1707 | BRAKE COLLAR (CLEAR) | $0.99 | ||
|
BNT1701
>> TGT0386 |
BRAKE COLLAR | $0.99 | ||
|
BNT0268
>> TGT0420 |
SPACER B | $0.99 | ||
|
BNT0042
>> TGT0520 |
LINE GUIDE PAWL | $3.01 |
