CT200GTB

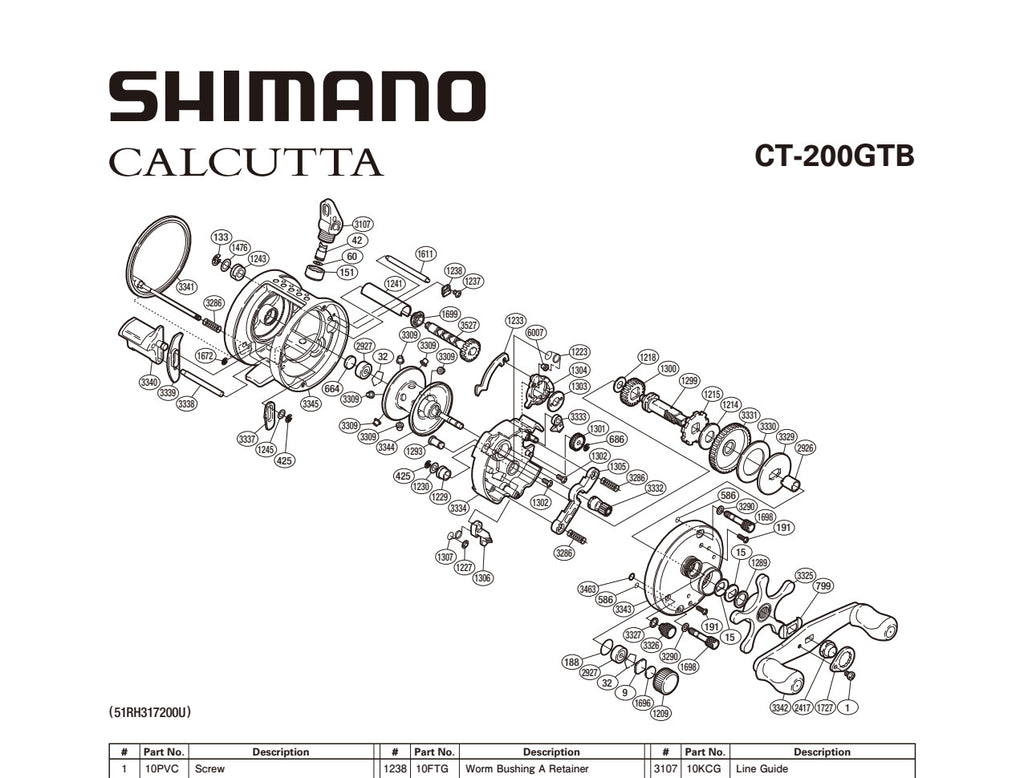

Download Schematic PDF
Select a quantity and click the cart icon to add to cart.
»=INDICATES A PART SUBSTITUTION
| Part Number | Part Description | Price | Quantity | Add To Cart |
|---|---|---|---|---|
| BNT1696 | CAST CONTROL SPACER (B) | $0.99 | ||
| BNT0686 | E LOCK | $0.99 | ||
| BNT0060 | SPACER (OPTIONAL) | $0.99 | ||
| BNT0032 | BEARING RETAINER | $0.99 | ||
| BNT1672 | E LOCK | $0.99 | ||
| BNT2927 | BALL BEARING | $8.72 | ||
| BNT0015 | DRAG SPRING WASHER | $0.99 | ||
| BNT0664 | SPACER (B) | $0.99 | ||
| BNT0151 | PAWL CAP | $1.13 | ||
| BNT1698 | RIGHT SIDE PLATE BOLT | $1.22 | ||
| BNT0425 | CLUTCH BUTTON LOCK | $0.99 | ||
| BNT3290 | WASHER | $0.99 | ||
| BNT0799 | FRICTION WASHER | $0.99 | ||
| BNT1301 | IDLE GEAR (B) | $0.99 | ||
| BNT3107 | LINE GUIDE | $4.56 | ||
| BNT1476 | DRIVE SHAFT WASHER D | $0.99 | ||
| BNT2417 | HANDLE NUT | $1.13 | ||
| BNT1727 | HANDLE NUT PLATE | $0.99 | ||
| BNT1229 | DRIVE SHAFT BUSHING | $1.69 | ||
| BNT1209 | CAST CONTROL CAP | $2.59 | ||
| BNT1300 | IDLE GEAR (A) | $0.99 | ||
| BNT1218 | IDLE GEAR (A) SPACER | $0.99 | ||
| BNT0188 | O-RING | $0.99 | ||
| BNT0586 | BOLT RETAINER | $0.99 | ||
| BNT3340 | QUICK-FIRE II CLUTCH BAR | $3.95 | ||
| BNT1699 | WORM BUSHING (A) | $0.99 | ||
| BNT1289 | STAR DRAG SPACER | $2.30 | ||
| BNT1245 | CLUTCH BAR SUPPORT SPACER | $0.99 | ||
| BNT1243 | WORM BUSHING (B) | $0.99 | ||
| BNT1227 | CLUTCH PAWL SPRING RETAINER | $0.99 | ||
| BNT1214 | DRAG WASHER (A) | $0.99 | ||
|
BNT1201
>> BNT6007 |
RETRACTOR SPRING COLLAR | $0.99 | ||
| BNT1714 | WORM SHAFT | $5.26 | ||
| BNT1307 | CLUTCH PAWL SPRING | $0.99 | ||
| BNT1223 | RETRACTOR SPRING | $0.99 | ||
| BNT3331 | DRIVE GEAR | $7.59 | ||
| BNT3330 | DRAG WASHER | $9.73 | ||
| BNT3325 | STAR DRAG | $13.11 | ||
| BNT1306 | CLUTCH PAWL | $3.85 | ||
| BNT3339 | CLUTCH BAR GUIDE B | $0.99 | ||
| BNT3337 | CLUTCH BAR GUIDE A | $0.99 | ||
| BNT3332 | PINION GEAR | $5.34 | ||
| BNT3329 | KEY WASHER | $1.69 | ||
| BNT3286 | YOKE SPRING | $0.99 | ||
| BNT1299 | DRIVE SHAFT | $4.37 | ||
| BNT1237 | WORM BUSHING A RETAINER SCREW | $0.99 | ||
| BNT1233 | CLUTCH PLATE | $0.99 | ||
| BNT1230 | DRIVE SHAFT SPACER | $0.99 | ||
| BNT3344 | SPOOL ASSEMBLY | $49.00 | ||
| BNT3309 | BRAKE COLLAR | $0.99 | ||
| BNT2926 | ROLLER CLUTCH INNER TUBE | $5.69 | ||
| BNT1304 | CLUTCH CAM | $0.99 | ||
| BNT1302 | CLUTCH CAM SCREW | $0.99 | ||
| BNT6007 | RETRACTOR SPRING COLLAR | $0.99 | ||
|
BNT0191
>> BNT1876 |
THUMB REST SCREW | $0.99 | ||
|
BNT0133
>> TLD0132 |
"C" LOCK | $0.99 | ||
|
BNT0042
>> TGT0520 |
LINE GUIDE PAWL | $3.01 | ||
|
BNT0009
>> TGT0182 |
CAST CONTROL SPACER | $0.99 | ||
|
BNT0001
>> BNT0770 |
HANDLE NUT PLATE SCREW | $0.99 | ||
| BNT3463 | NUT RETAINER | $0.99 | ||
| BNT3345 | ONE-PIECE FRAME | $85.53 | ||
| BNT3343 | RIGHT SIDE PLATE | $29.78 | ||
| BNT3342 | HANDLE ASSEMBLY | $48.09 | ||
| BNT3341 | LEFT SIDE PLATE | $26.31 | ||
| BNT3338 | CLUTCH BAR SUPPORT | $1.13 | ||
| BNT3334 | SET PLATE | $11.47 | ||
| BNT3333 | ANTI-REVERSE PAWL | $1.69 | ||
| BNT3327 | WASHER | $0.99 | ||
| BNT3326 | SIDE PLATE OPEN NUT | $2.26 | ||
| BNT1611 | LEVEL WIND GUIDE | $0.99 | ||
| BNT1305 | YOKE | $0.99 | ||
| BNT1303 | CLUTCH CAM RETAINER | $0.99 | ||
| BNT1293 | RETRACTOR SPRING PIN | $0.99 | ||
| BNT1241 | LEVEL WIND GUARD | $1.13 | ||
| BNT1238 | WORM BUSHING (A) RETAINER | $0.99 | ||
| BNT1215 | ANTI-REVERSE RATCHET | $0.99 |
