STL4000XGFI

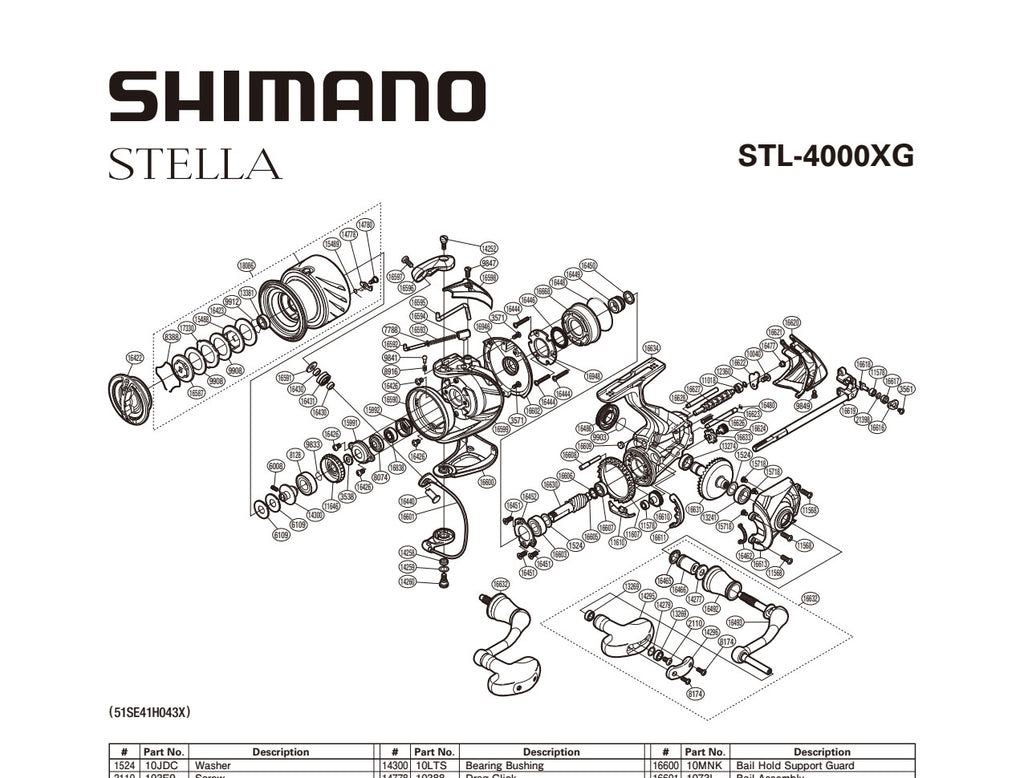

Download Schematic PDF
Select a quantity and click the cart icon to add to cart.
»=INDICATES A PART SUBSTITUTION
| Part Number | Part Description | Price | Quantity | Add To Cart |
|---|---|---|---|---|
|
RD13269
>> 104VX |
BB 4X7X2.5 ARB NAS MADE IN TH | $3.69 | ||
|
RD13274
>> 104PP |
BALL BEARINGMADE IN COMBODIA | $3.80 | ||
|
RD13241
>> 104JD |
BALL BEARING MADE IN COMBODIA | $4.01 | ||
|
RD11018
>> 10PDA |
BALL BEARINGMADE IN THAILAND | $5.93 | ||
| RD 9908 | DRAG WASHER A | $0.99 | ||
|
RD11578
>> 10PC0 |
BALL BEARINGMADE IN JAPAN | $8.70 | ||
|
RD16591
>> 10HWT |
02BBX3EV ROLLER WASHER | $0.99 | ||
|
RD 2110
>> 103E9 |
SLIDER RETAINER SCREW | $0.99 | ||
|
RD 9833
>> 107V2 |
04STL25 RATCHET SPR | $0.99 | ||
|
RD13381
>> 104JT |
BALL BEARINGMADE IN Thailand | $3.44 | ||
|
RD11607
>> 104FU |
07STL25 FRCTIN RING | $1.74 | ||
|
RD11610
>> 107DZ |
08STL25FD B/T STRIKE | $2.49 | ||
|
RD11646
>> 107PS |
07STL4 D/C RATCHET | $0.99 | ||
|
RD15718
>> 1055G |
13STLSW5HG SCREW | $0.99 | ||
| RD14780 | SCREW | $0.99 | ||
|
RD14279
>> 10G8G |
09CU200E7 AJST W 0.1 | $0.99 | ||
|
RD 9841
>> 10CHA |
01BBX TECH 5000 BAIL ARM CLICK | $0.99 | ||
|
RD 6008
>> 10PN2 |
SET SCREW M2X5 | $0.99 | ||
|
RD16593
>> 105R5 |
14STL4000 BAIL SPR | $0.99 | ||
|
RD16465
>> 10PXU |
14STL2500 H/S SEAL | $0.99 | ||
|
RD14778
>> 10388 |
11BIO2500 DRAG CLICK | $0.99 | ||
|
RD 9903
>> 108WA |
04STL25 O RING SS9.5 | $0.99 | ||
| RD 6109 | SPOOL WASHER | $0.99 | ||
|
RD16594
>> 107AA |
Discontinued | |||
|
RD16448
>> 10MLT |
Discontinued | |||
|
RD16592
>> 105YZ |
Discontinued | |||
| RD16480 | O RING | $0.99 | ||
|
RD 8174
>> 103NM |
Discontinued | |||
|
RD 1524
>> 10JDC |
Discontinued | |||
| RD16426 | SCREW | $0.99 | ||
|
RD14866
>> 10KXF |
Discontinued | |||
| RD15992 | ROTOR NUT | $7.05 | ||
|
RD12360
>> 10J7K |
Discontinued | |||
|
RD 9849
>> 106ZG |
Discontinued | |||
| RD16838 | MAIN SHAFT SPACER | $29.14 | ||
|
RD16423
>> 10C1D |
Discontinued | |||
|
RD 9847
>> 10CYU |
Discontinued | |||
|
RD14259
>> 10G6C |
Discontinued | |||
| RD16621 | REAR SHIELD | $1.88 | ||
|
RD16603
>> 104VF |
Discontinued | |||
| RD16431 | LINE ROLLER | $28.20 | ||
| RD15488 | KEY WASHER | $1.65 | ||
| RD16617 | OSCILLATING SLIDER BUSHING | $3.29 | ||
|
RD16477
>> 10AYN |
Discontinued | |||
| RD15991 | ROTOR NUT LOCK PLATE | $1.41 | ||
|
RD11568
>> 10M2C |
SCREW | $1.03 | Out Of Stock ETA : 2024/08/25 |
|
|
RD 2298
>> RD21398 |
Discontinued | |||
|
RD14300
>> 10LTS |
Discontinued | |||
|
RD16618
>> 106VM |
Discontinued | |||
| RD16596 | BAIL ARM | $9.40 | ||
