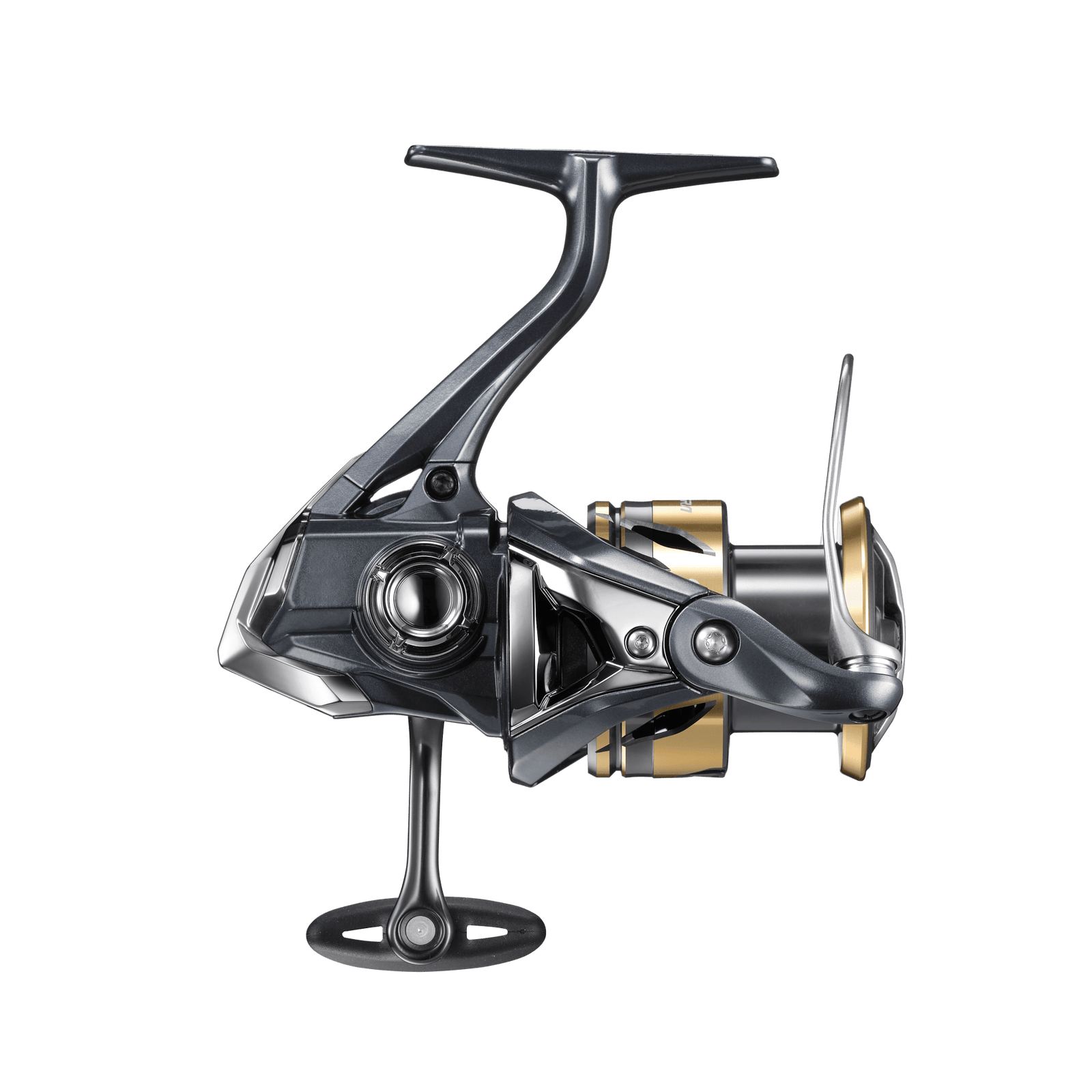

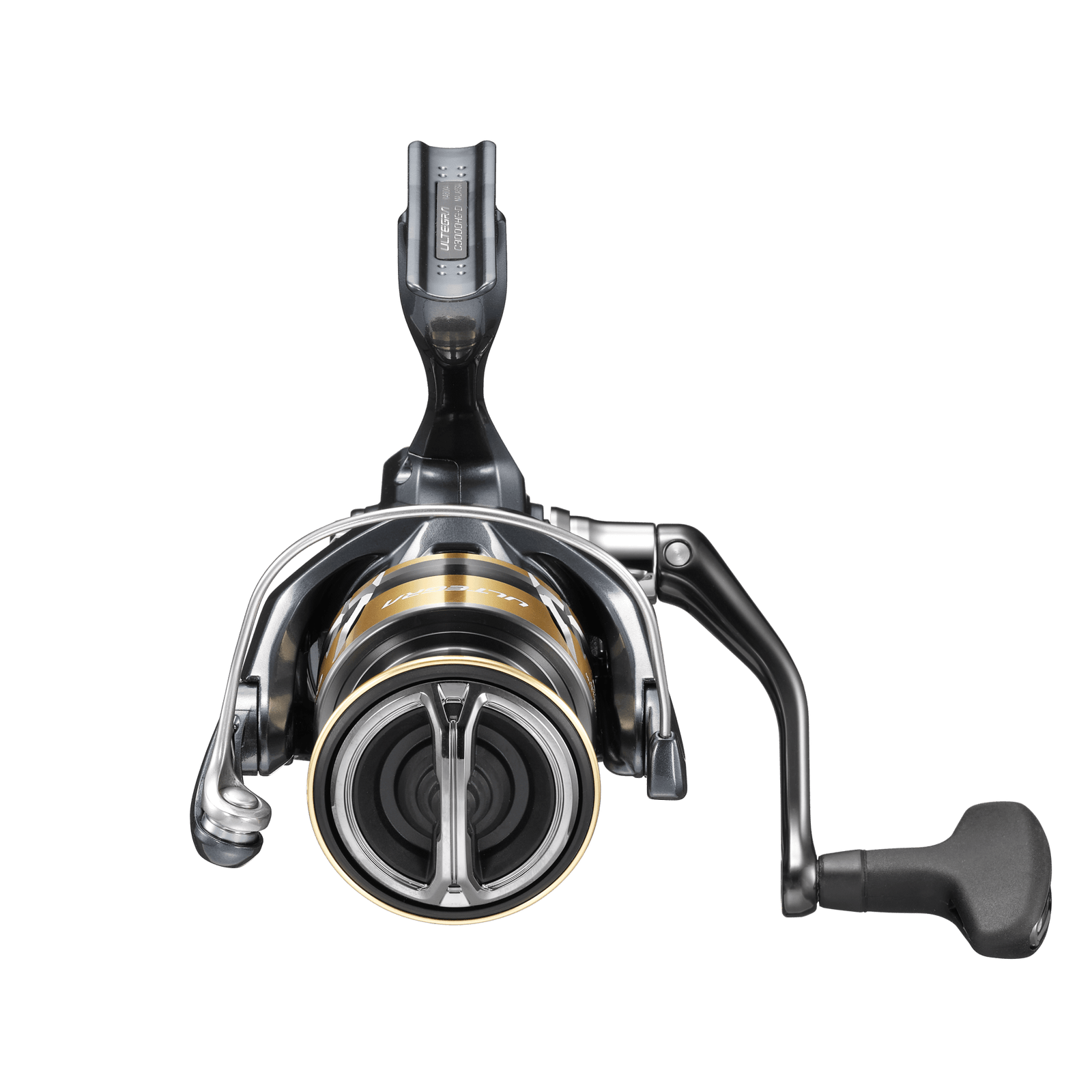

ULTEGRA FD
- InfinityXross
- InfinityDrive
- Anti-Twist Fin
- HAGANE Gear
- X-Protect
Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
Choose Your Product
| Model | Gear Ratio | Mono Line Capacity | PowerPro Line Capacity | Bearings | Weight | Price | More information buttons | Add to Cart buttons |
|---|---|---|---|---|---|---|---|---|
ULTC5000XGD SKU: ULTC5000XGD
Out of stock
|
6.2 |
12-195, 14-165 |
20-260, 30-235, 40-185 |
5/1 |
9.7oz |
$199.99 | ||
ULT1000D SKU: ULT1000D
In stock
|
5.1 |
2-270, 4-160, 6-110 |
10-95, 15-75, 20-65 |
5/1 |
6.3oz |
$179.99 | ||
ULT4000XGD SKU: ULT4000XGD
Out of stock
|
6.2 |
10-200, 12-160 |
15-230, 30-180, 40-140 |
5/1 |
9.3oz |
$189.99 | ||
ULTC3000HGD SKU: ULTC3000HGD
Out of stock
|
5.8 |
6-230, 8-170, 10-140 |
10-200, 20-140, 40-105 |
5/1 |
7.8oz |
$179.99 | ||
ULT2500HGD SKU: ULT2500HGD
Out of stock
|
5.8 |
8-140, 10-120 |
10-150, 15-145, 30-100 |
5/1 |
7.6oz |
$179.99 |
ULTC5000XGD
- Gear Ratio
- 6.2
- Mono Line Capacity
- 12-195, 14-165
- PowerPro Line Capacity
- 20-260, 30-235, 40-185
- Bearings
- 5/1
- Weight
- 9.7oz
ULT1000D
- Gear Ratio
- 5.1
- Mono Line Capacity
- 2-270, 4-160, 6-110
- PowerPro Line Capacity
- 10-95, 15-75, 20-65
- Bearings
- 5/1
- Weight
- 6.3oz
ULT4000XGD
- Gear Ratio
- 6.2
- Mono Line Capacity
- 10-200, 12-160
- PowerPro Line Capacity
- 15-230, 30-180, 40-140
- Bearings
- 5/1
- Weight
- 9.3oz
ULTC3000HGD
- Gear Ratio
- 5.8
- Mono Line Capacity
- 6-230, 8-170, 10-140
- PowerPro Line Capacity
- 10-200, 20-140, 40-105
- Bearings
- 5/1
- Weight
- 7.8oz
ULT2500HGD
- Gear Ratio
- 5.8
- Mono Line Capacity
- 8-140, 10-120
- PowerPro Line Capacity
- 10-150, 15-145, 30-100
- Bearings
- 5/1
- Weight
- 7.6oz
Email me when available

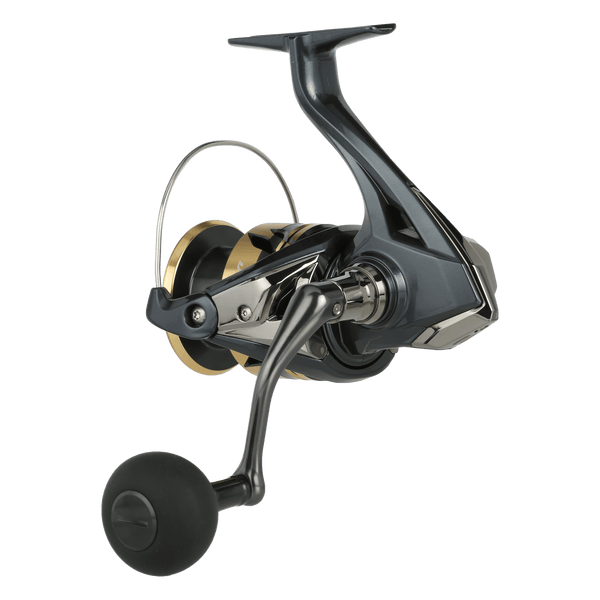

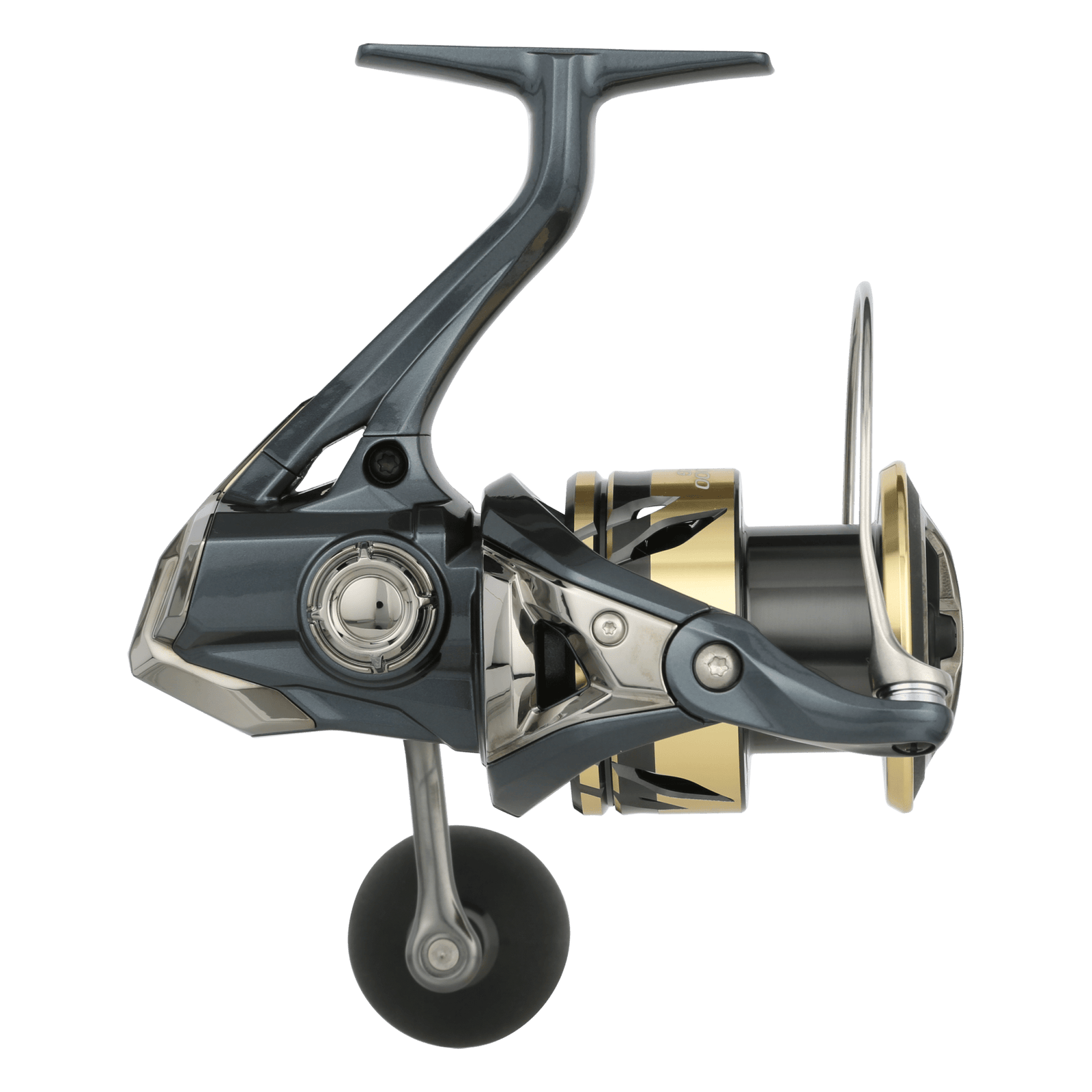

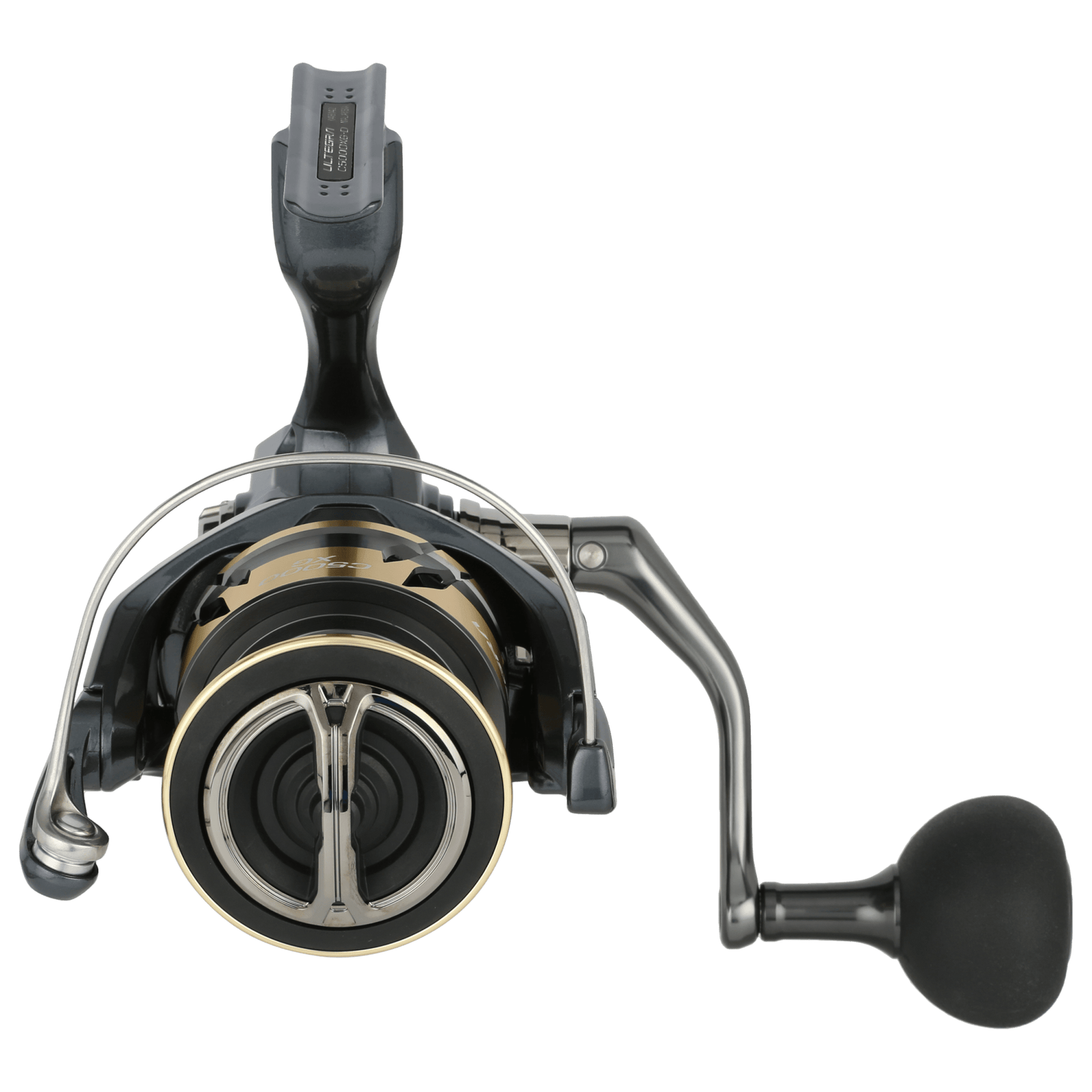

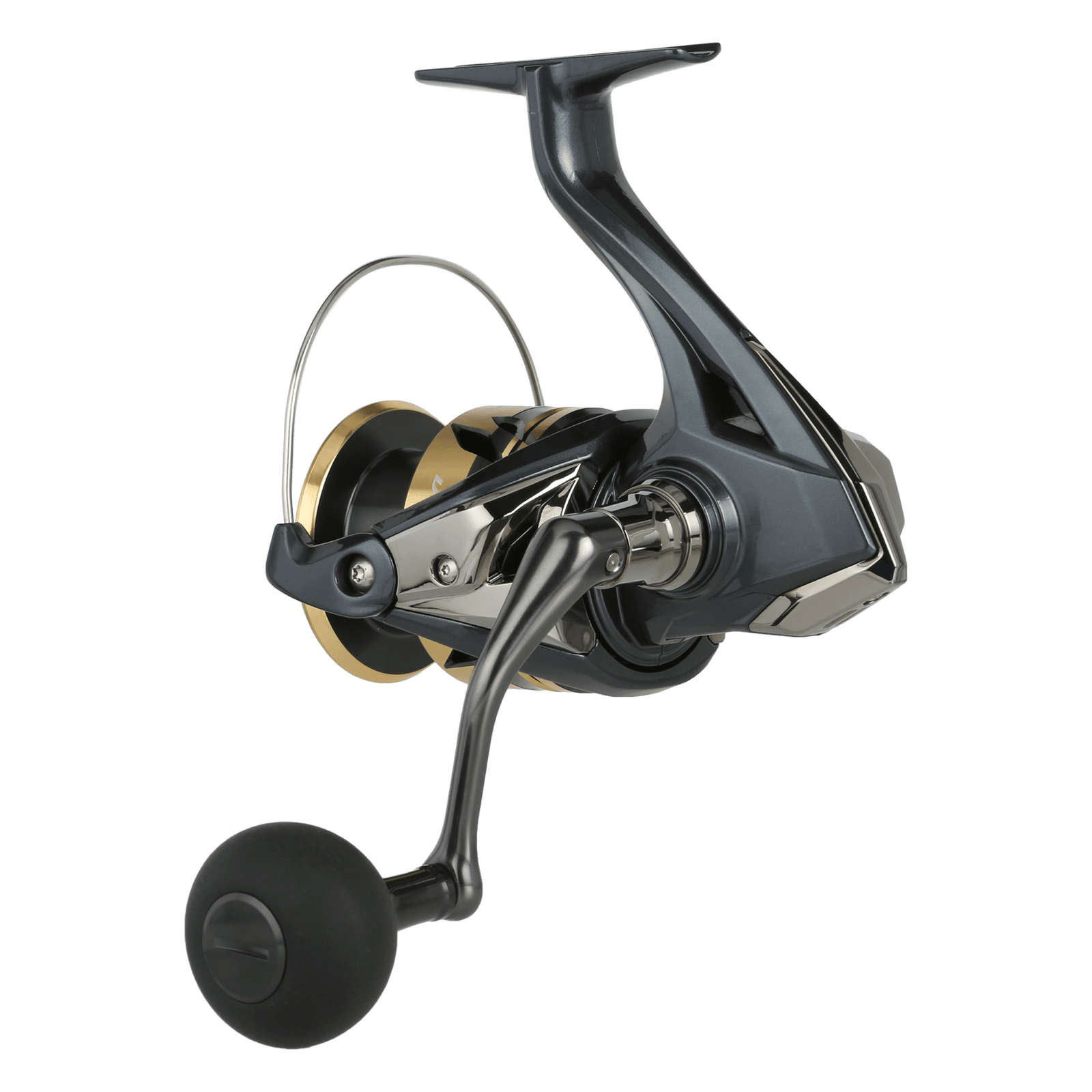

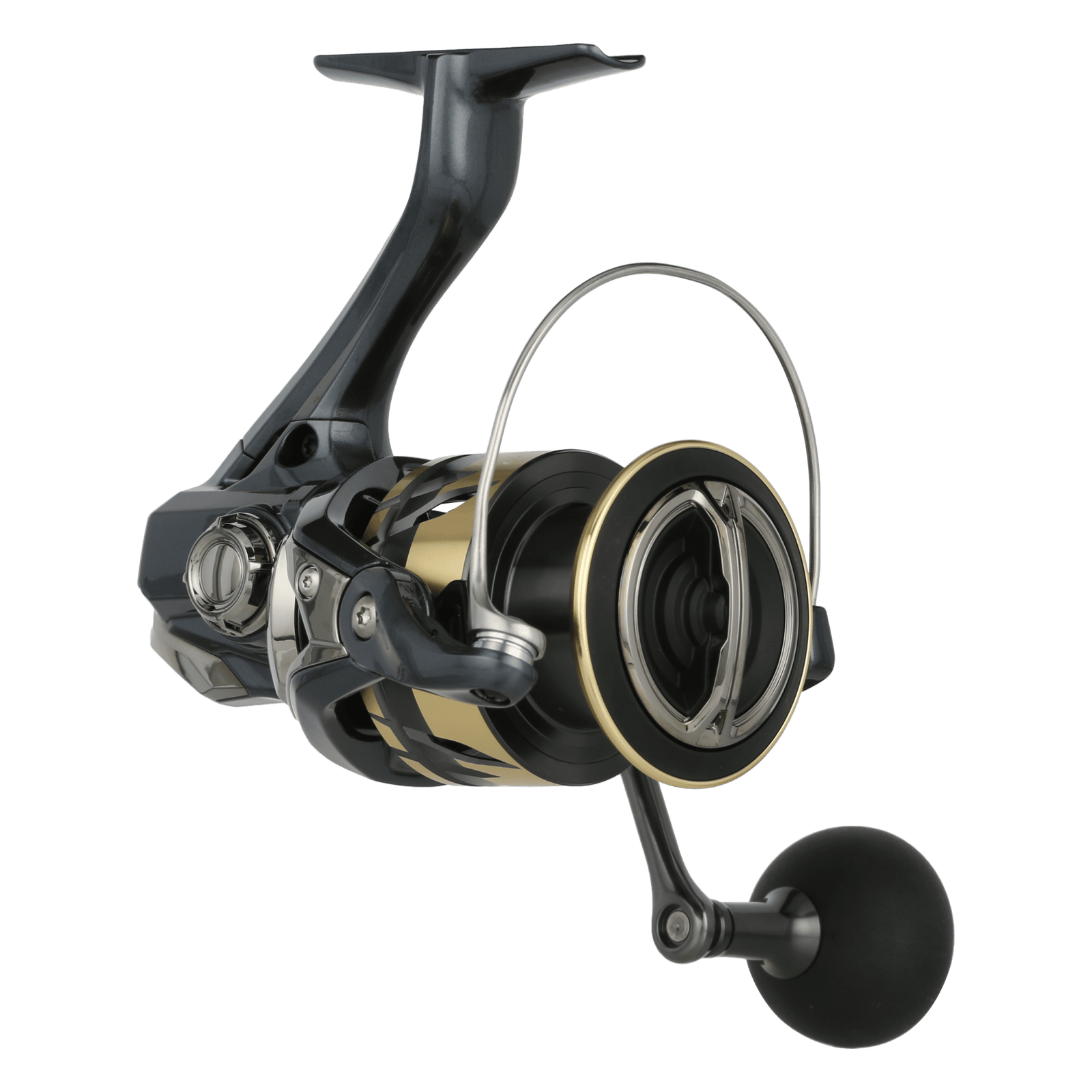

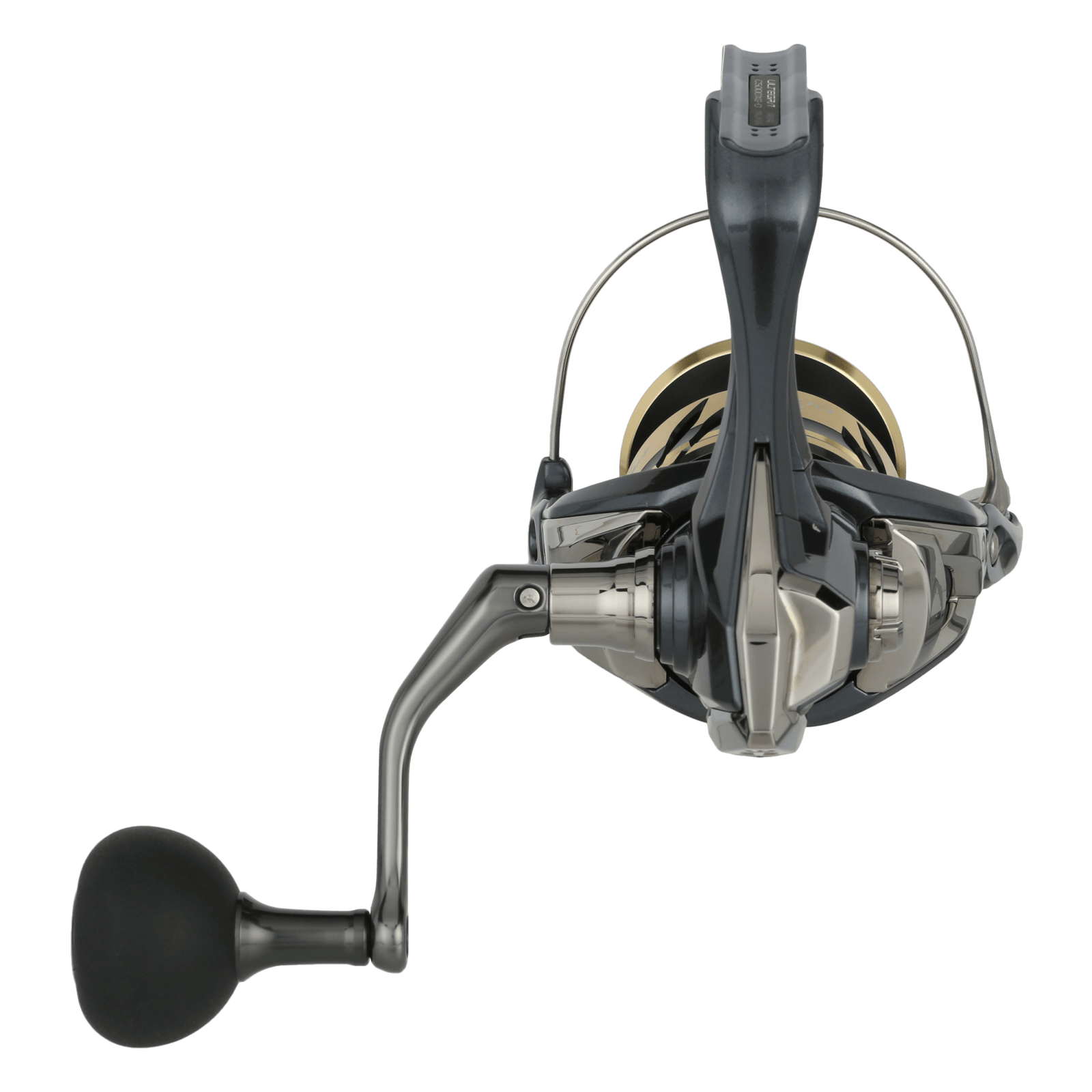

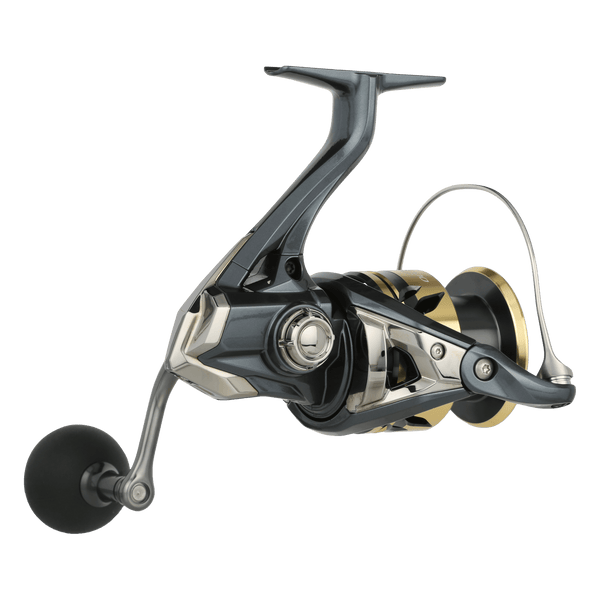

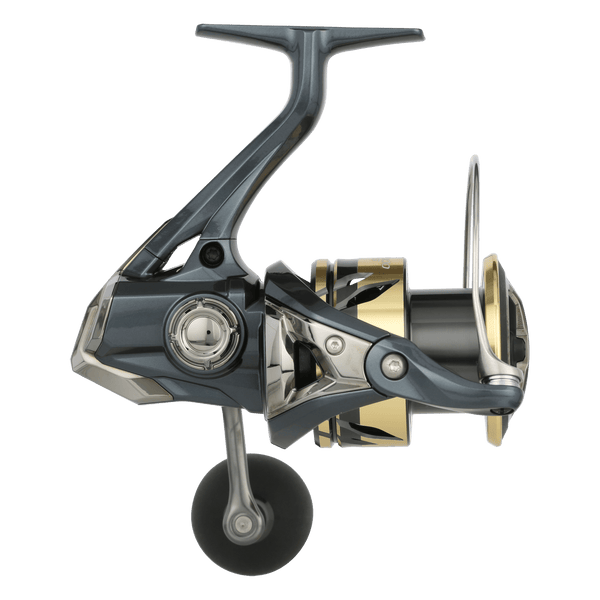

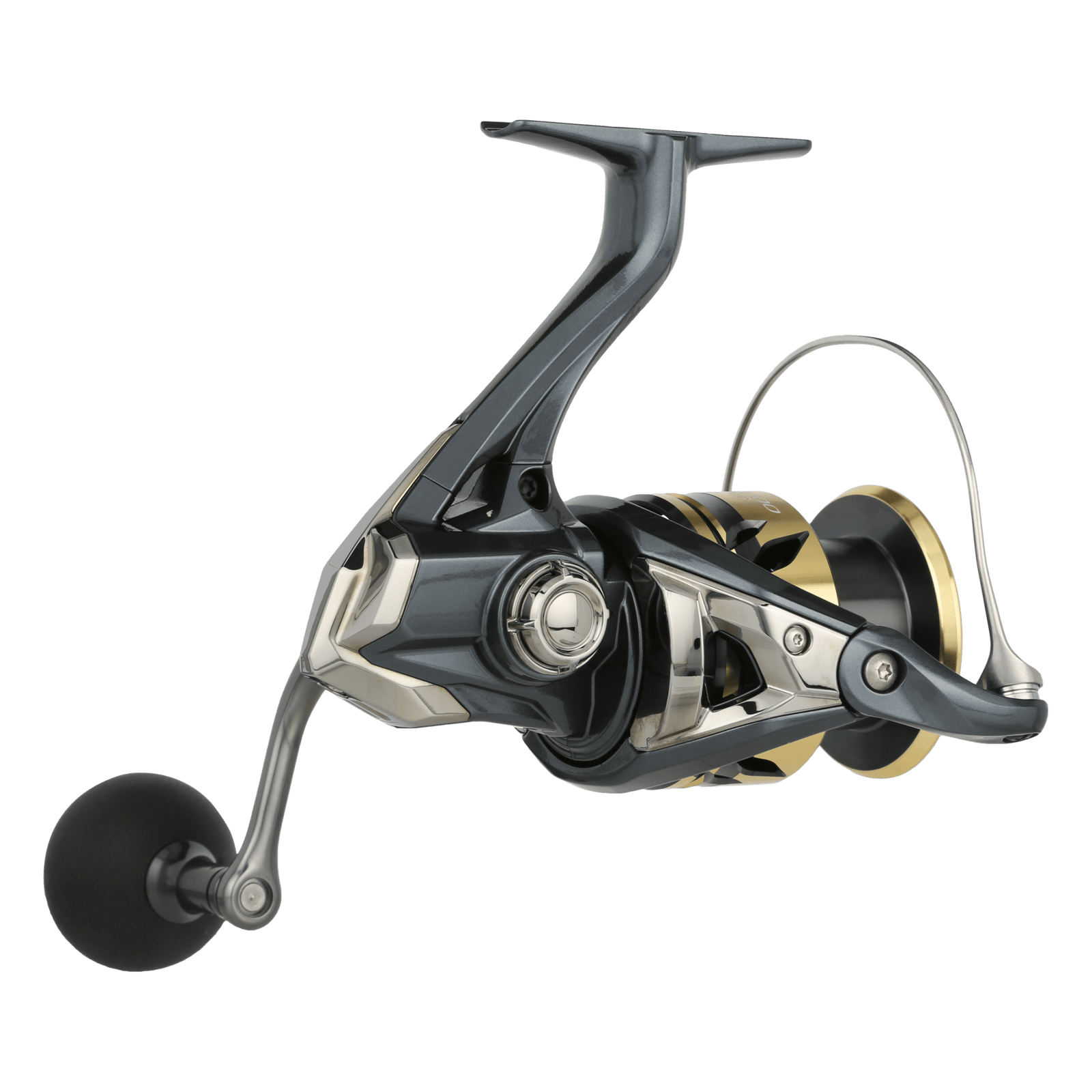

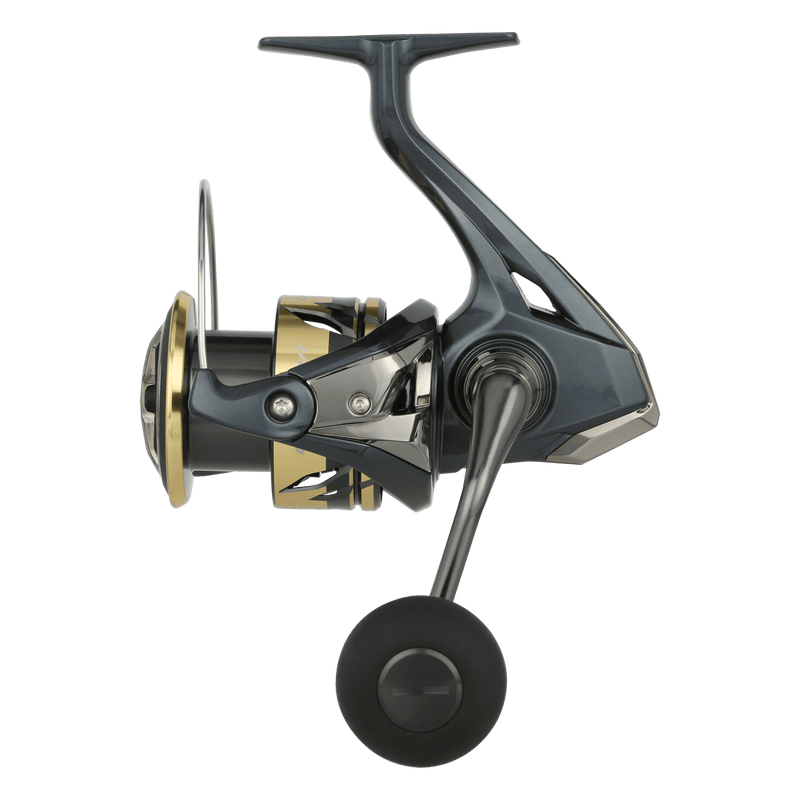

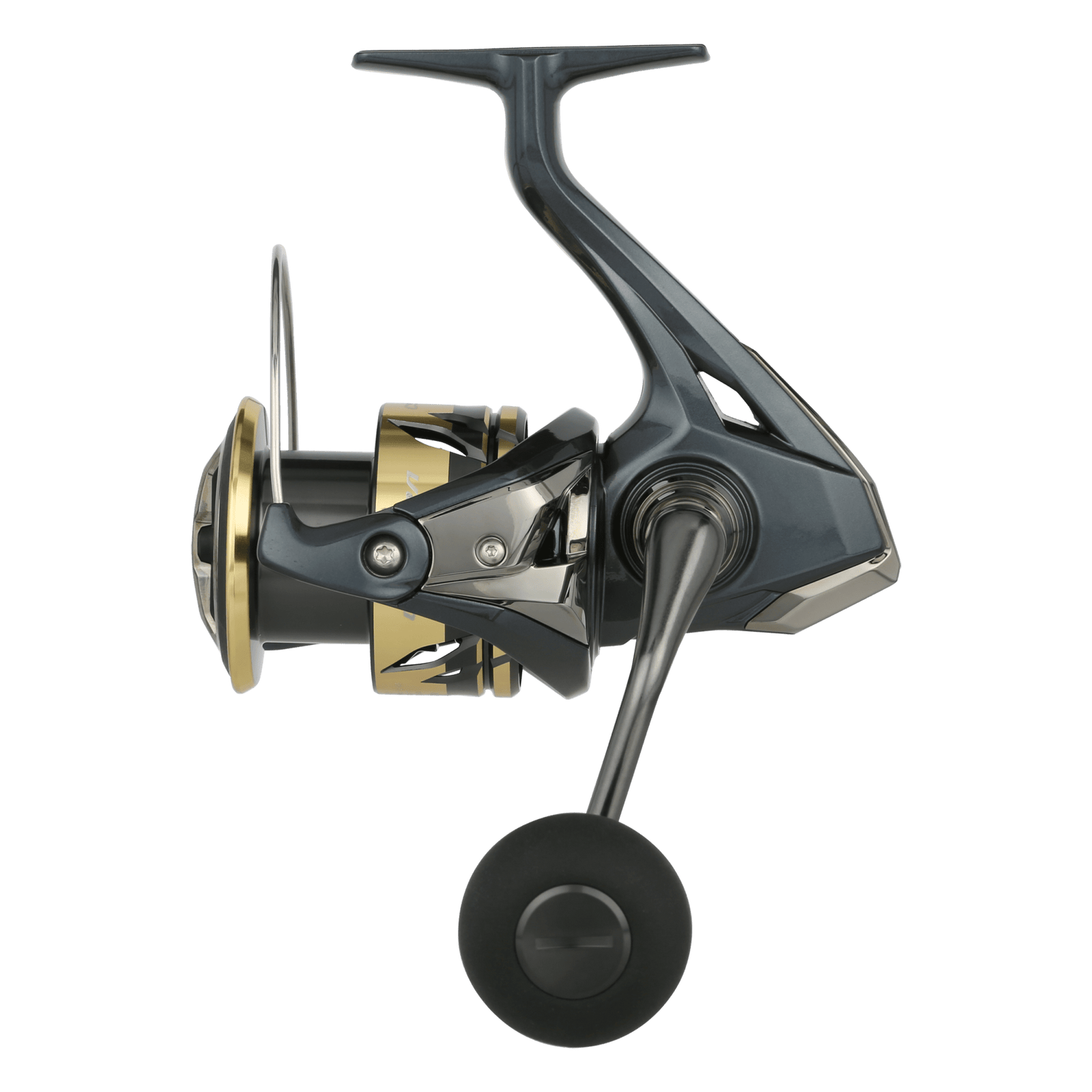

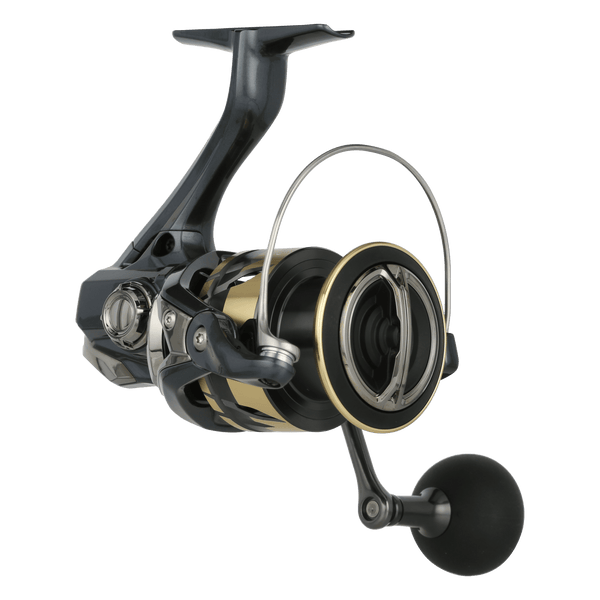

ULTC5000XGD
SKU: ULTC5000XGD
Specifications
- Bearings
- 5/1
- Drag Material
- Cross Carbon
- Drag Type
- Front Drag
- Gear Ratio
- 6.2
- Max Drag
- 24
- Mono Line Capacity
- 12-195, 14-165
- PowerPro Line Capacity
- 20-260, 30-235, 40-185
- Retrieve per Crank
- 40
![[sku:ULT1000D]primary image of sku ULT1000D](http://fishshop.shimano.com/cdn/shop/files/gkzaxkquit4sn2qoios6.avif?v=1771510061&width=400)
ULT1000D
SKU: ULT1000D
Specifications
- Bearings
- 5/1
- Drag Material
- Felt
- Drag Type
- Front Drag
- Gear Ratio
- 5.1
- Max Drag
- 7
- Mono Line Capacity
- 2-270, 4-160, 6-110
- PowerPro Line Capacity
- 10-95, 15-75, 20-65
- Retrieve per Crank
- 25

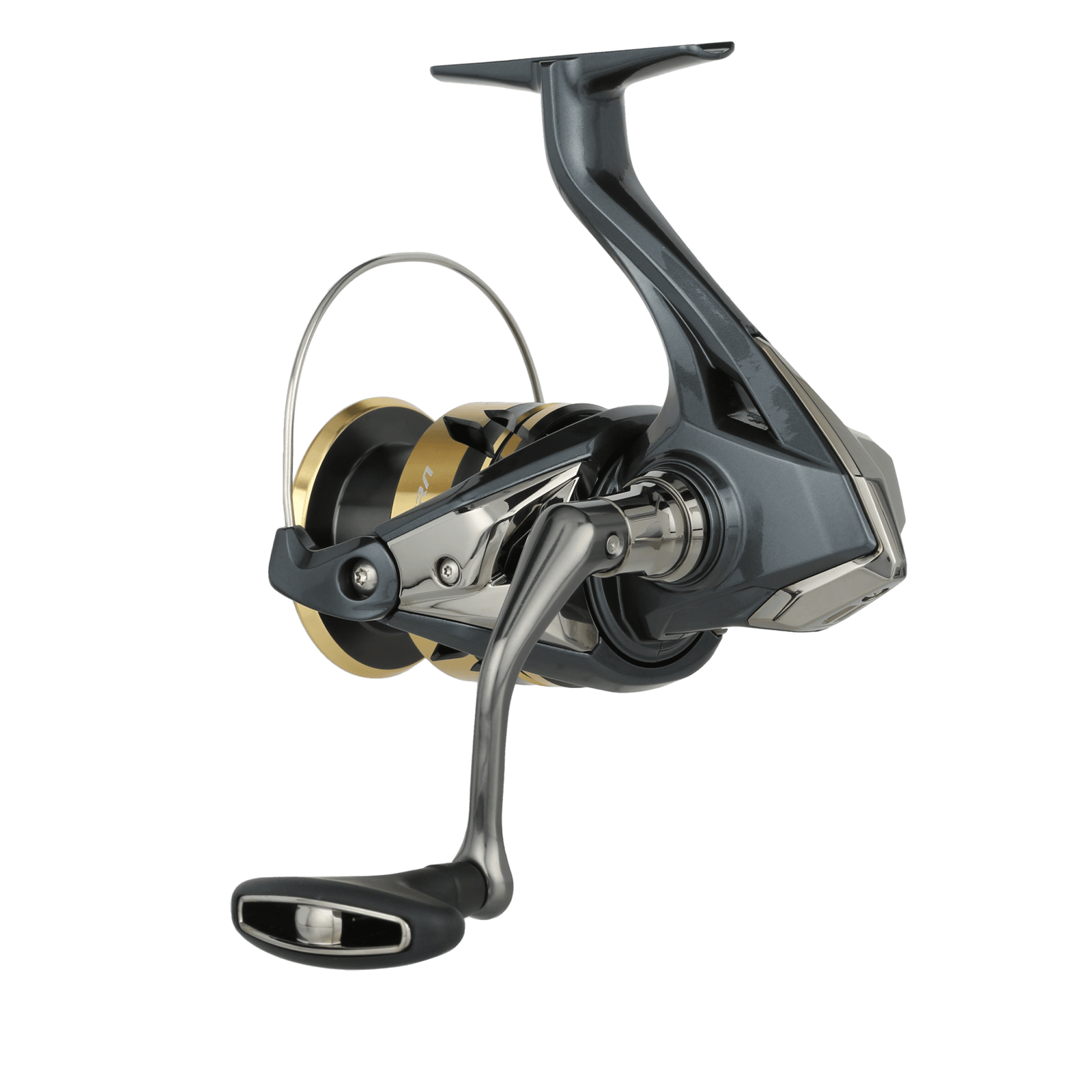

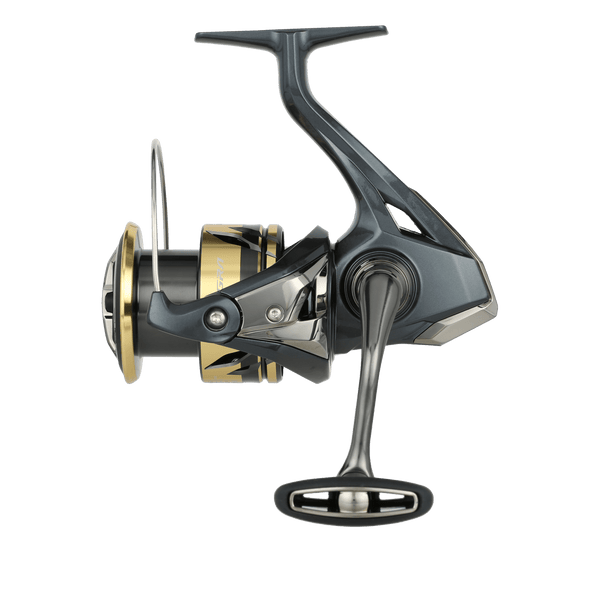

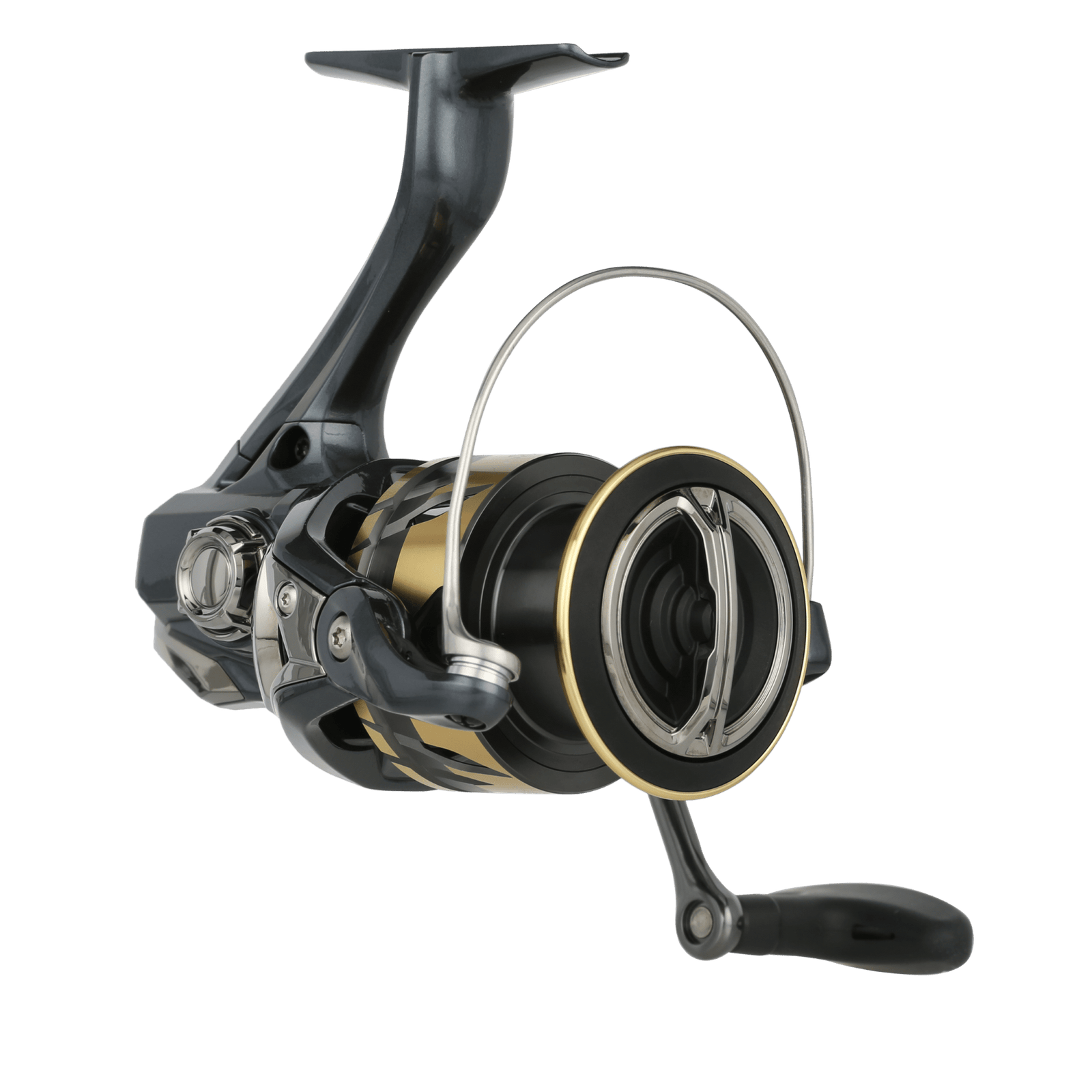

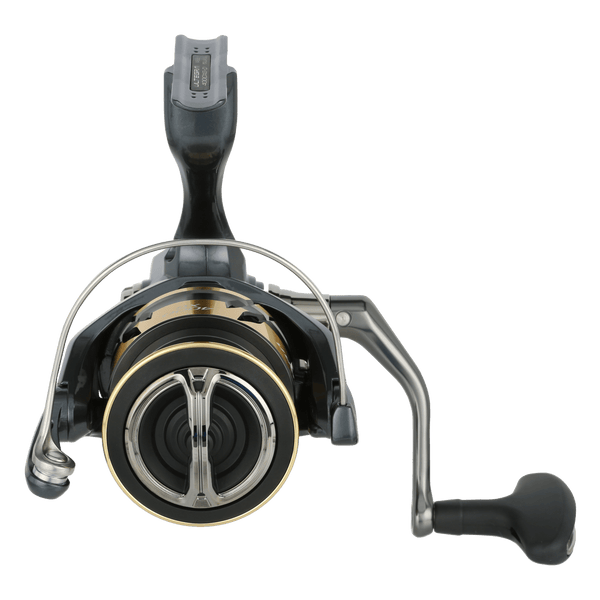

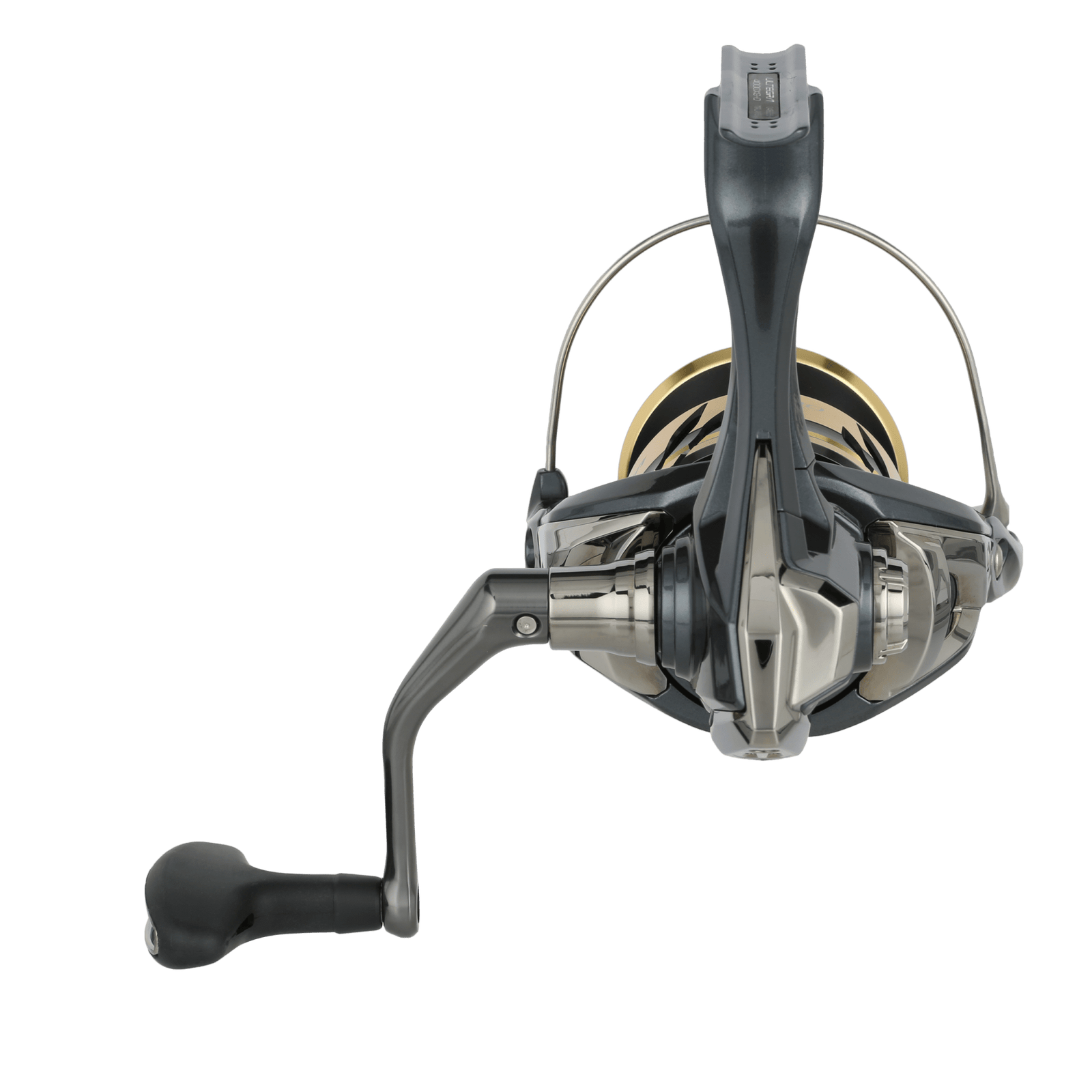

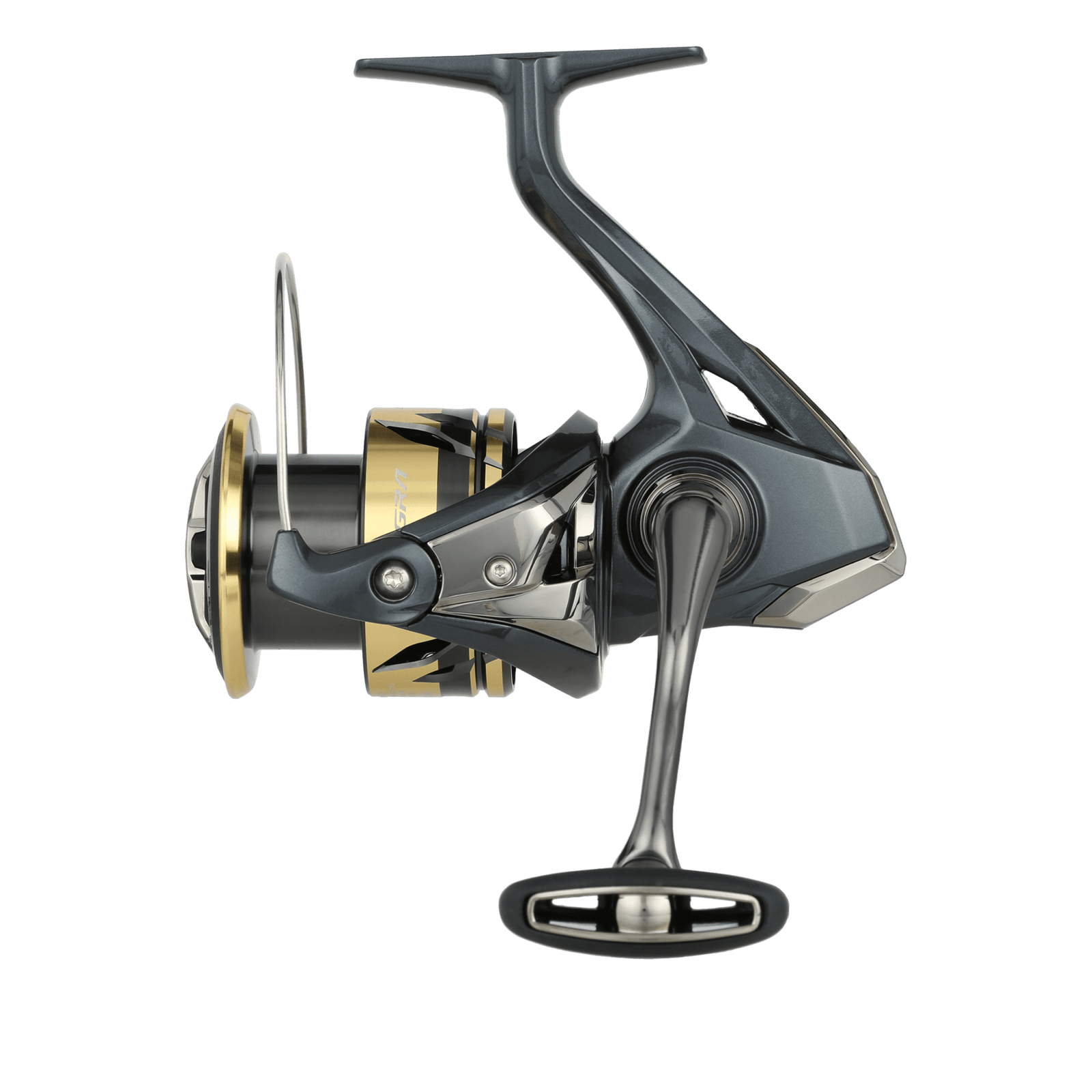

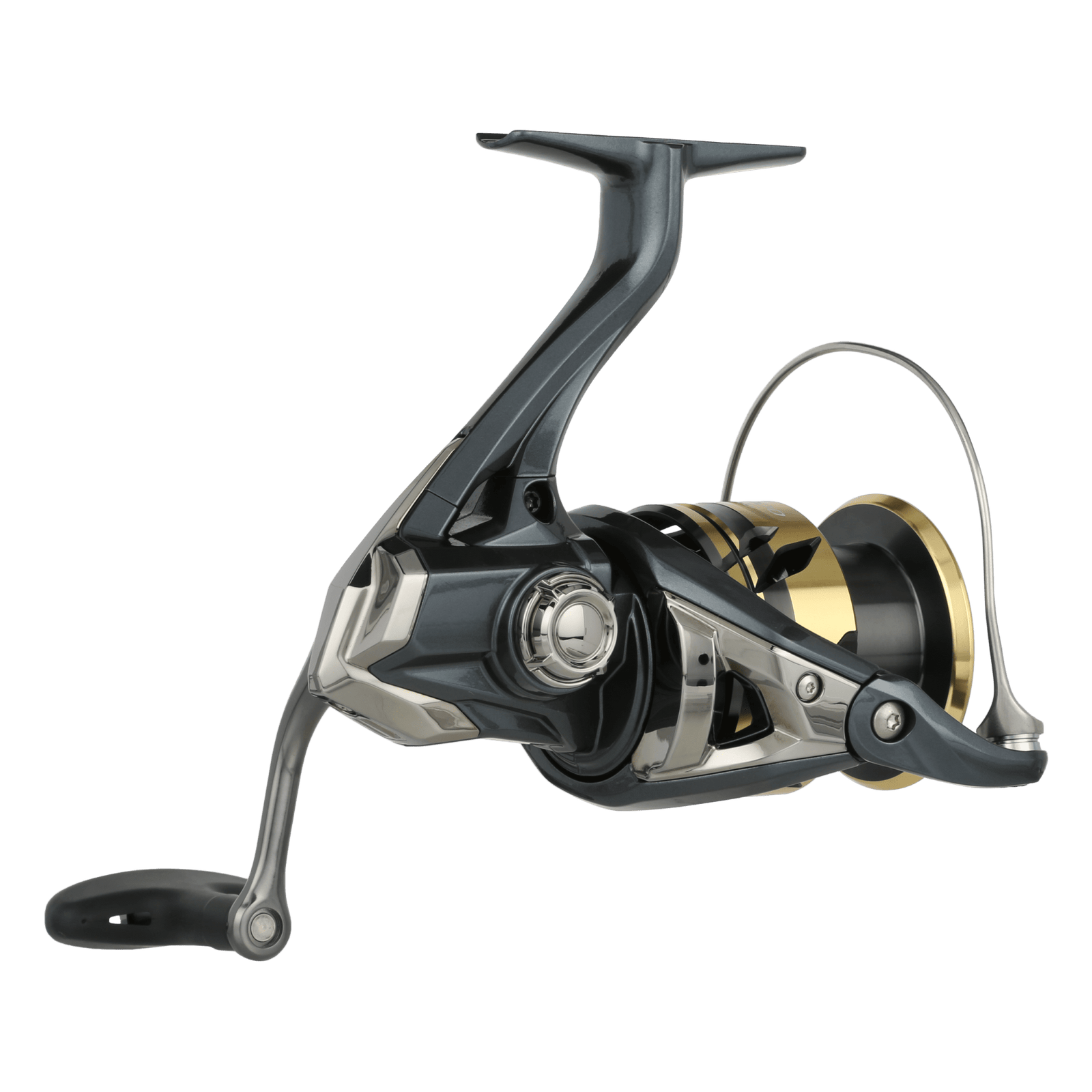

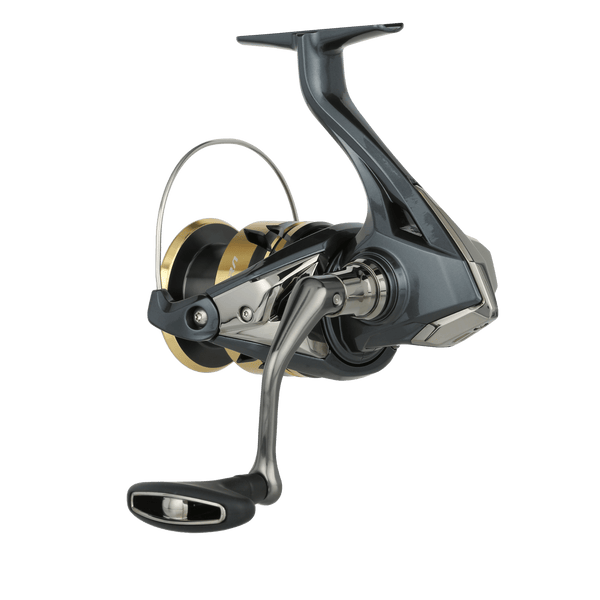

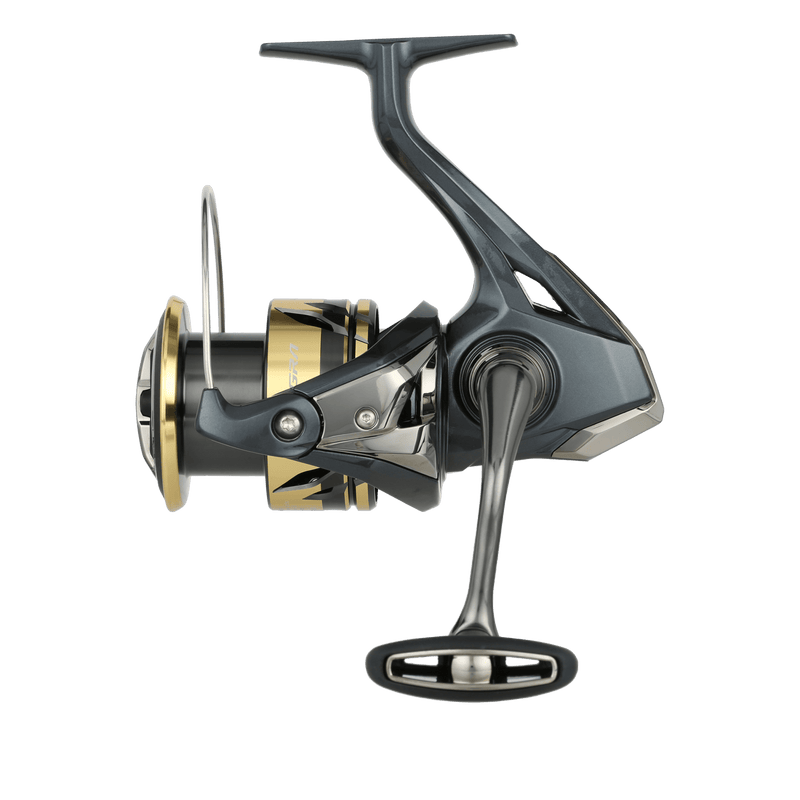

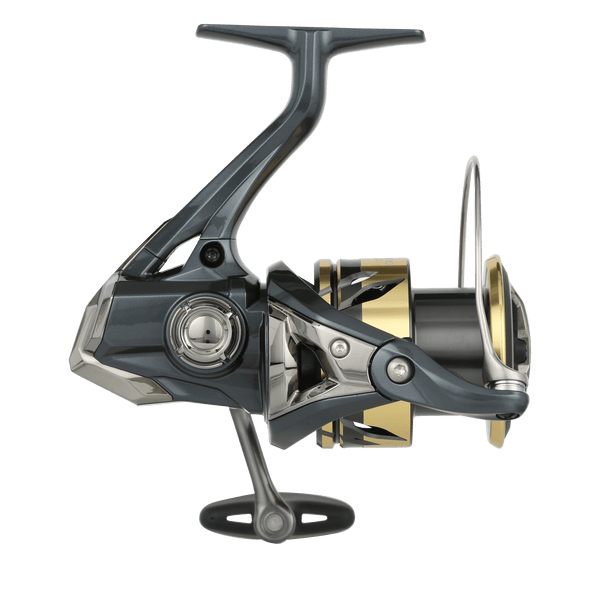

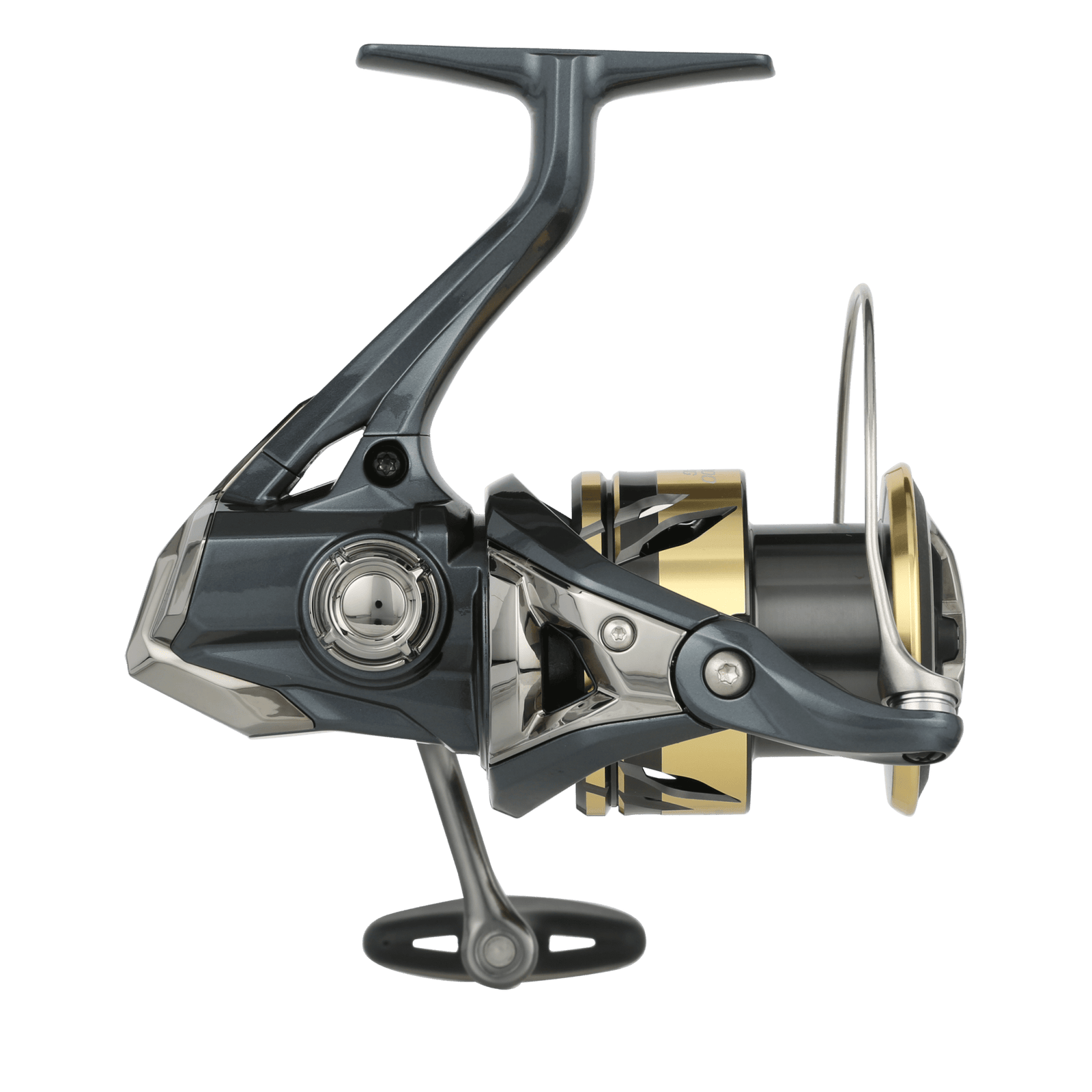

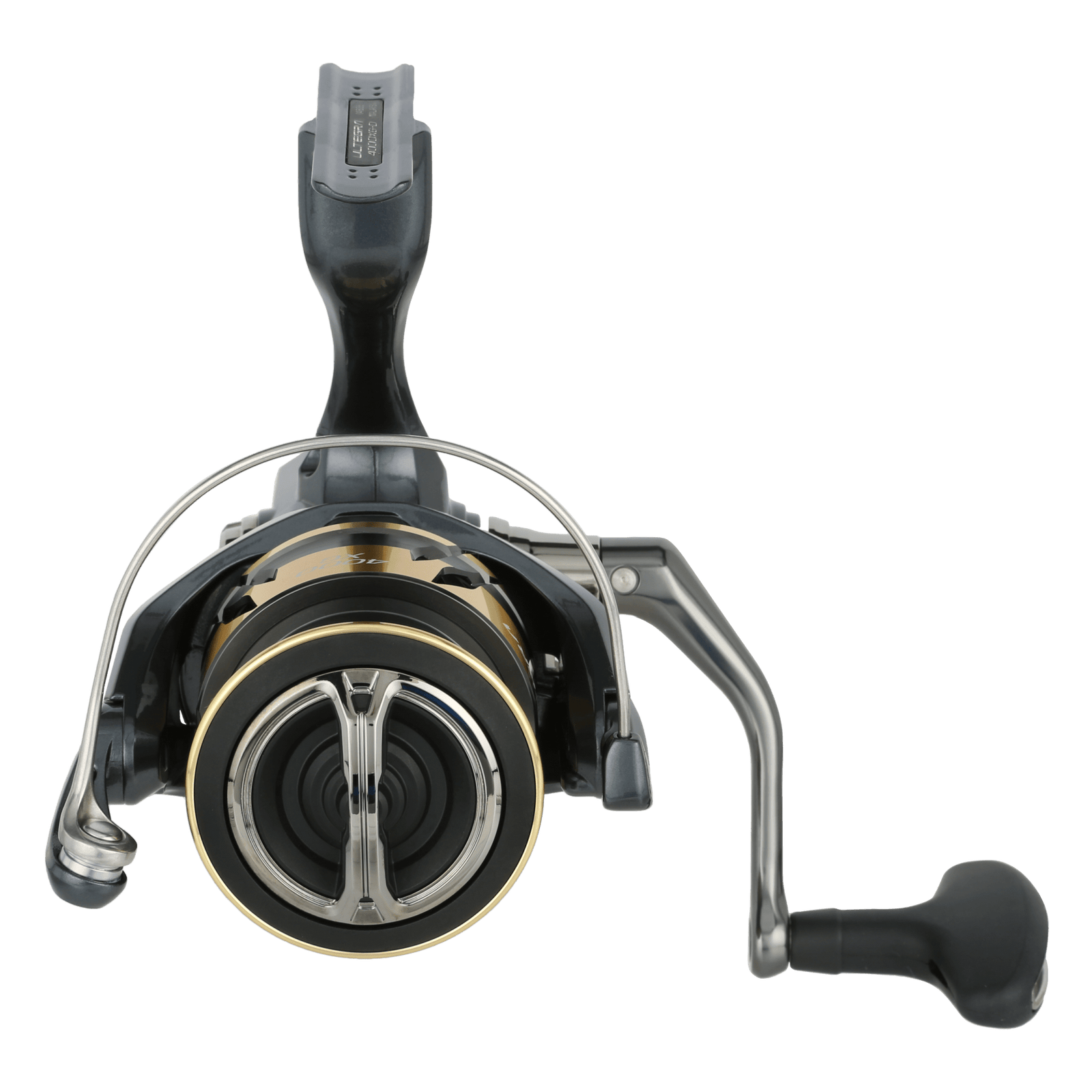

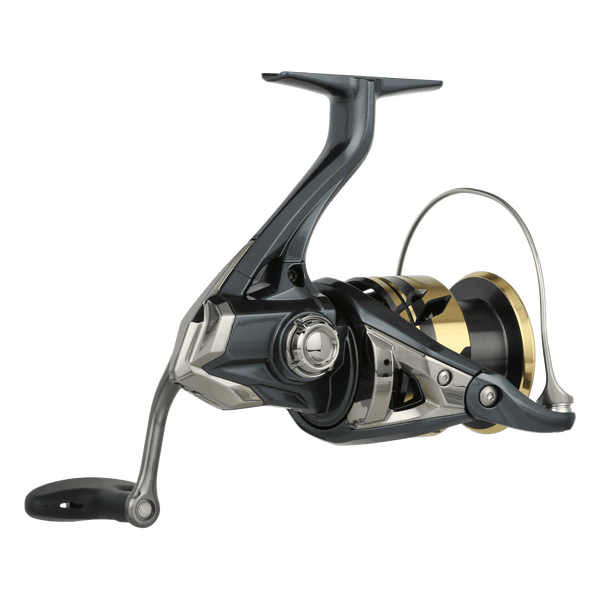

ULT4000XGD
SKU: ULT4000XGD
Specifications
- Bearings
- 5/1
- Drag Material
- Felt
- Drag Type
- Front Drag
- Gear Ratio
- 6.2
- Max Drag
- 24
- Mono Line Capacity
- 10-200, 12-160
- PowerPro Line Capacity
- 15-230, 30-180, 40-140
- Retrieve per Crank
- 40
![[sku:ULTC3000HGD]primary image of sku ULTC3000HGD](http://fishshop.shimano.com/cdn/shop/files/cezfxtxcwhwuoz13dmxw.avif?v=1771510061&width=400)

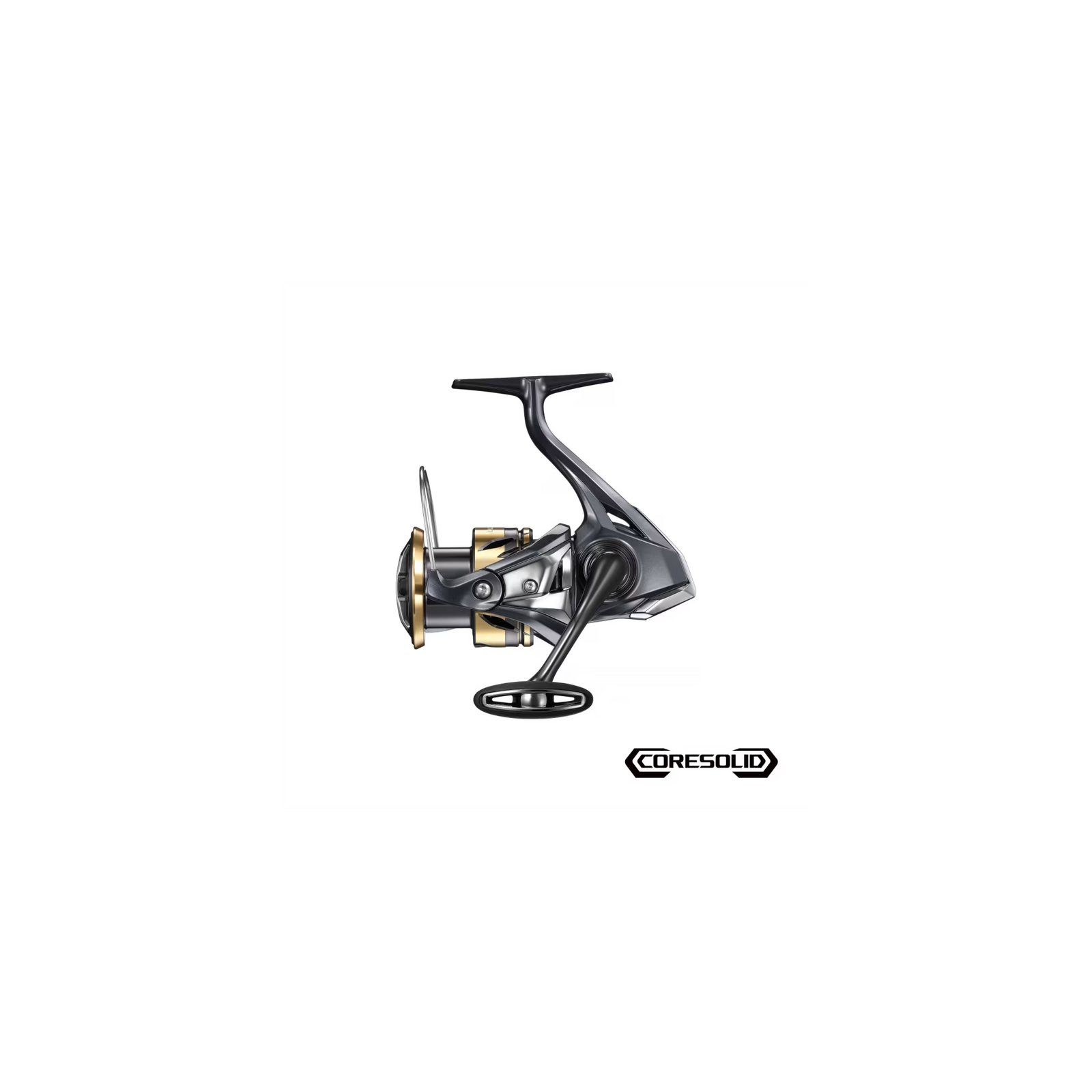

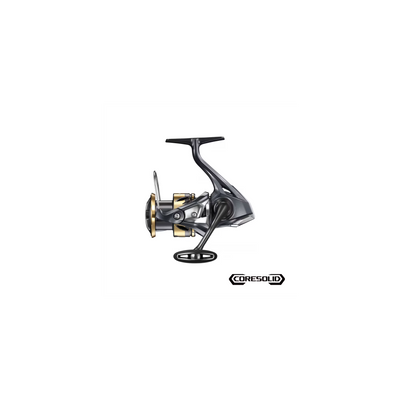

ULTC3000HGD
SKU: ULTC3000HGD
Specifications
- Bearings
- 5/1
- Drag Material
- Felt
- Drag Type
- Front Drag
- Gear Ratio
- 5.8
- Max Drag
- 20
- Mono Line Capacity
- 6-230, 8-170, 10-140
- PowerPro Line Capacity
- 10-200, 20-140, 40-105
- Retrieve per Crank
- 34

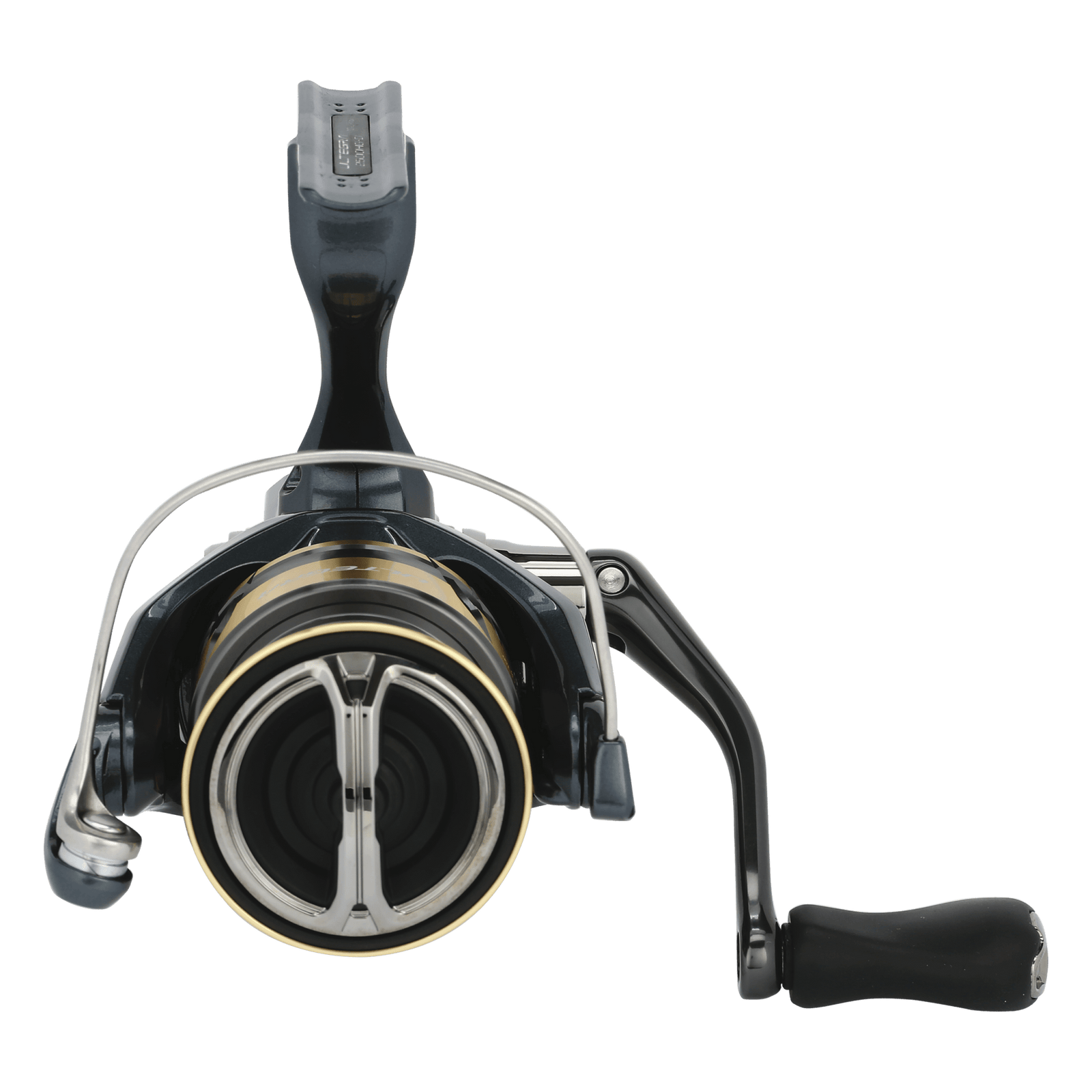

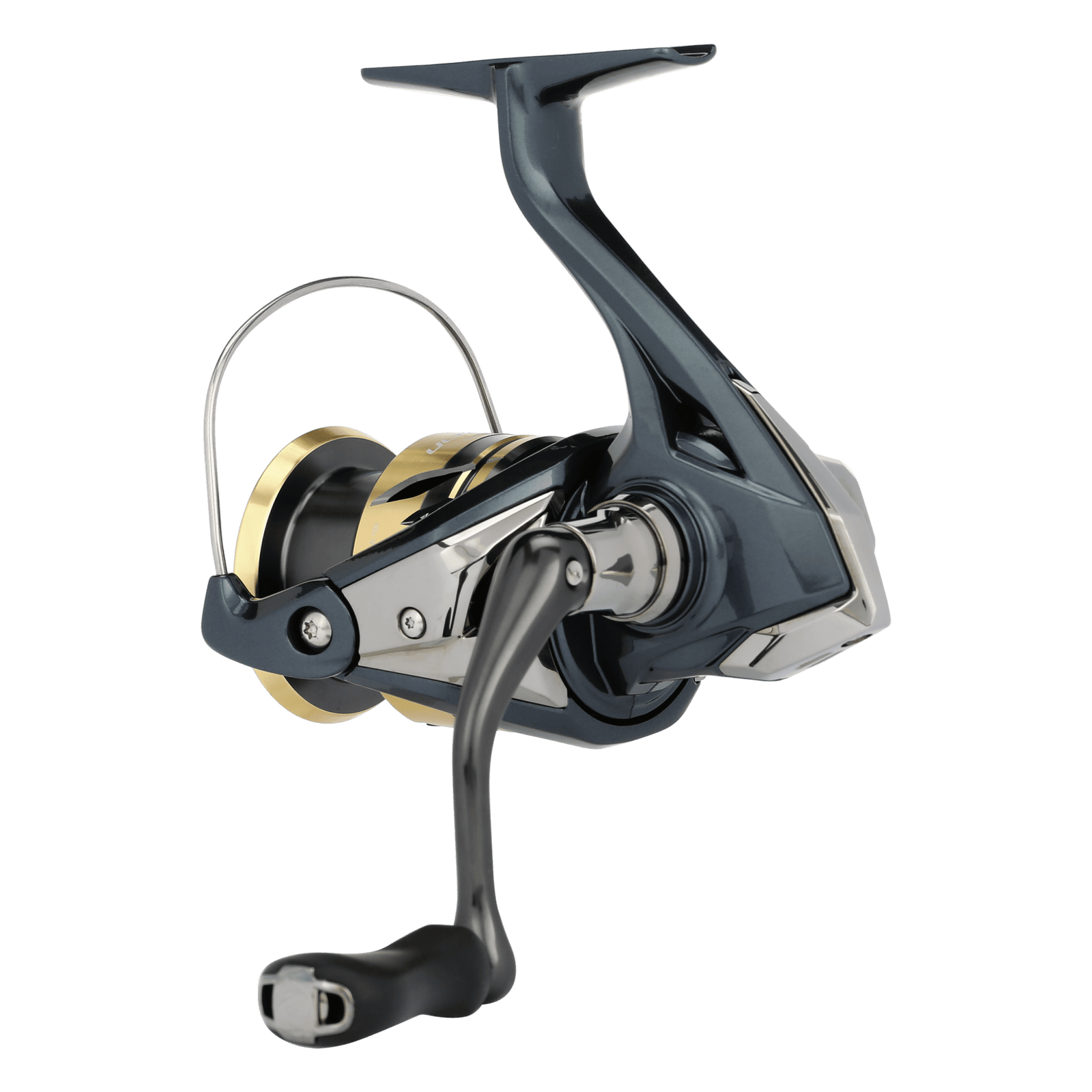

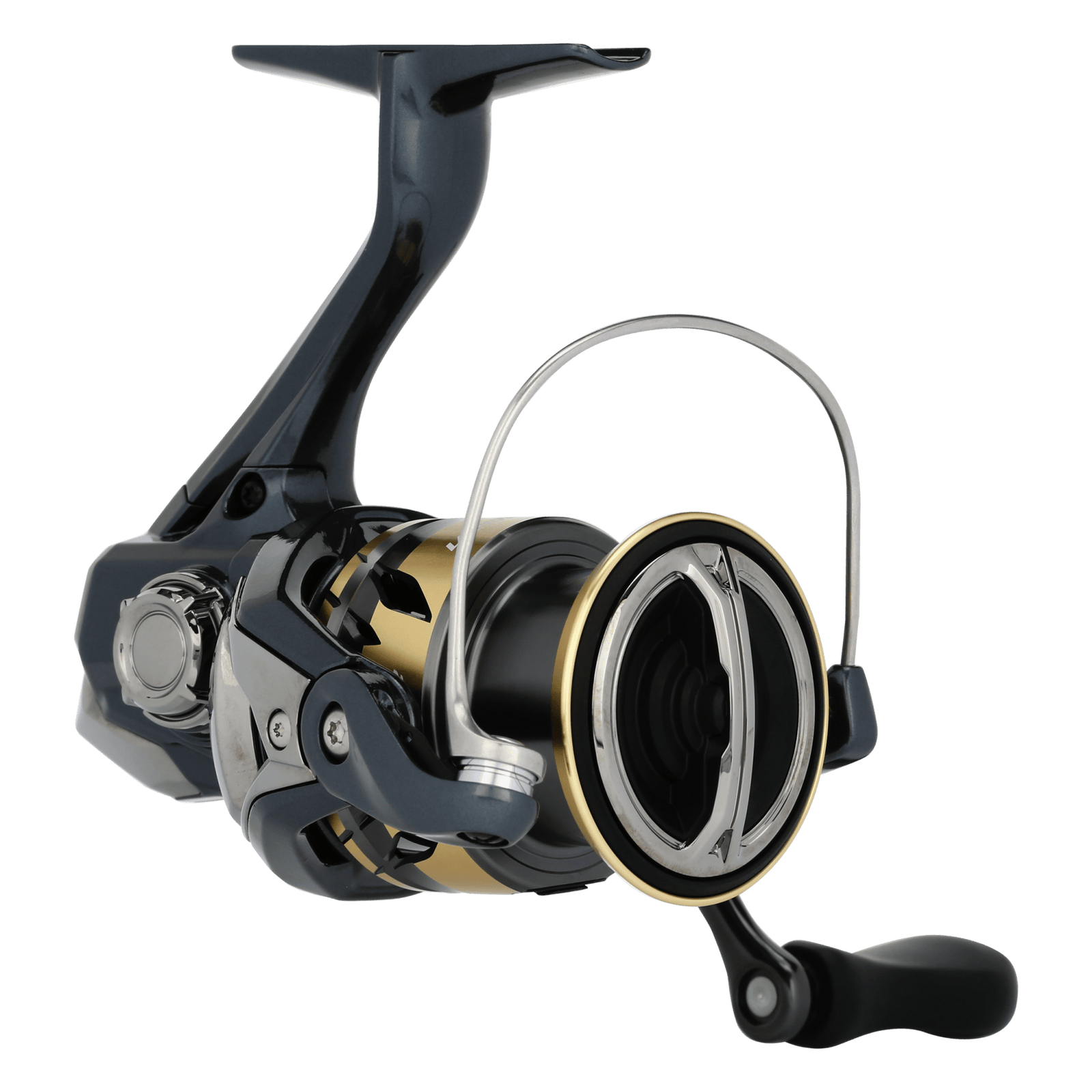

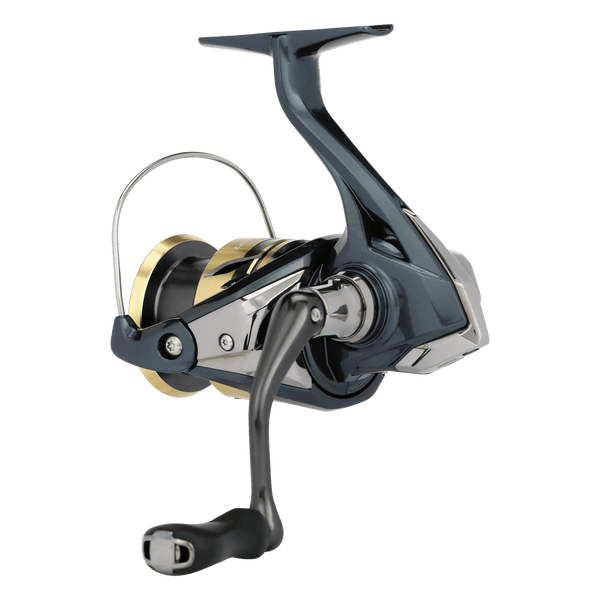

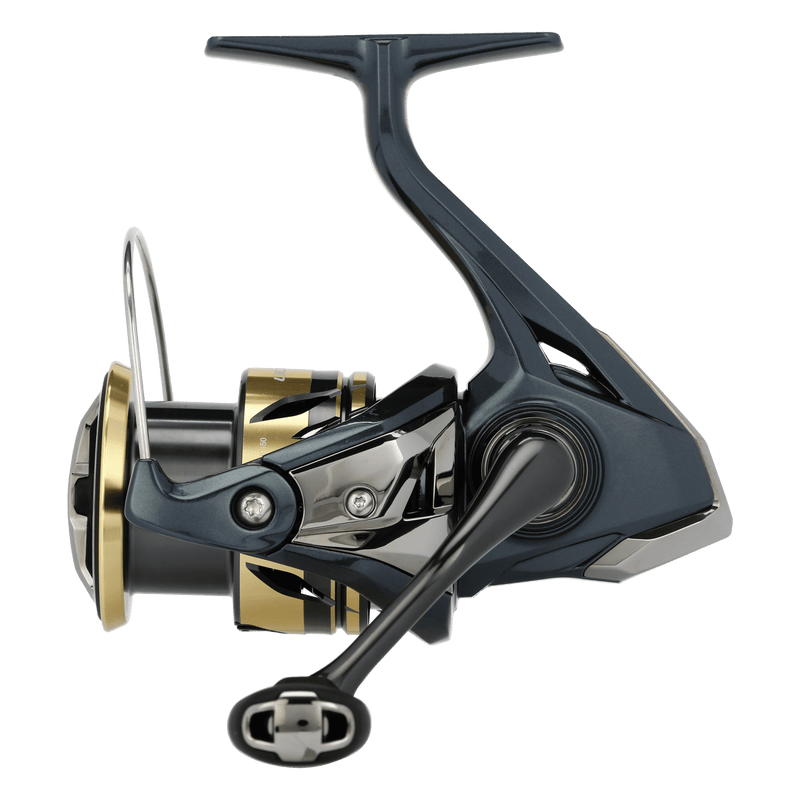

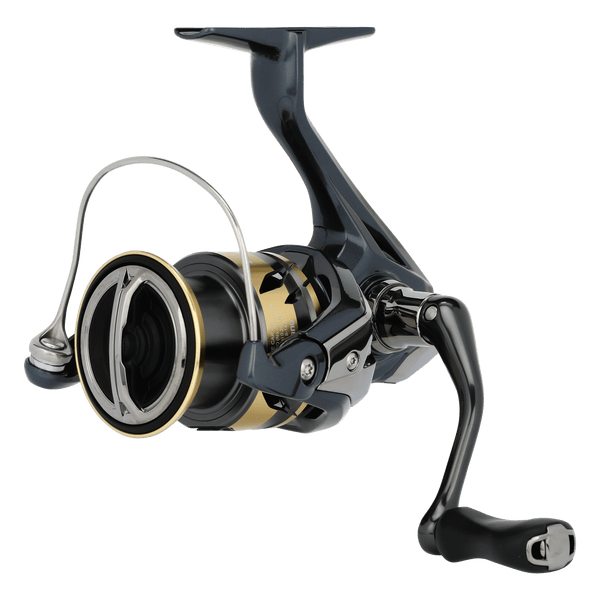

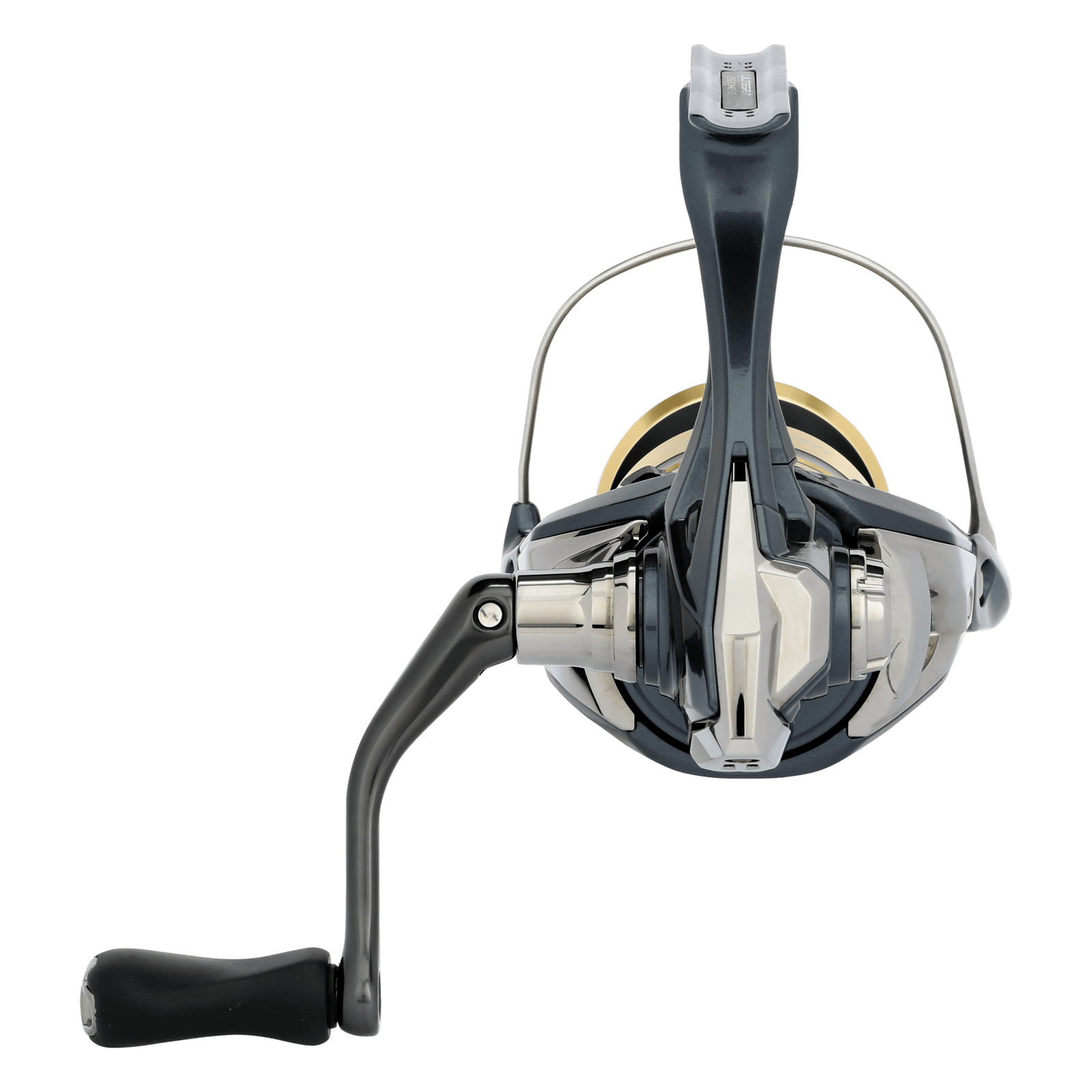

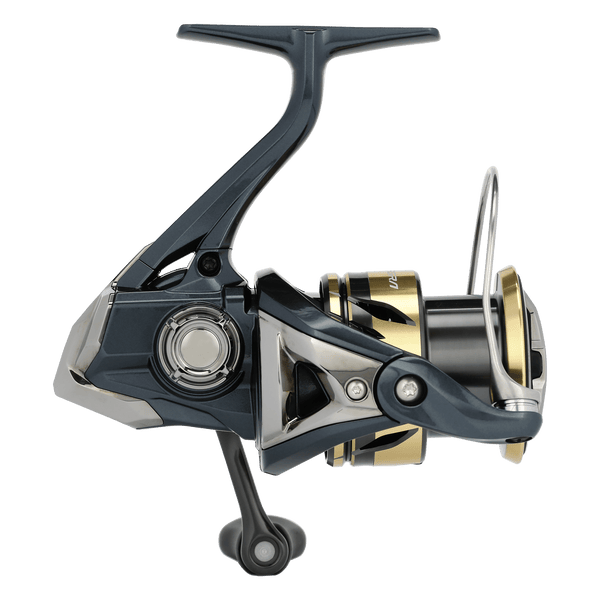

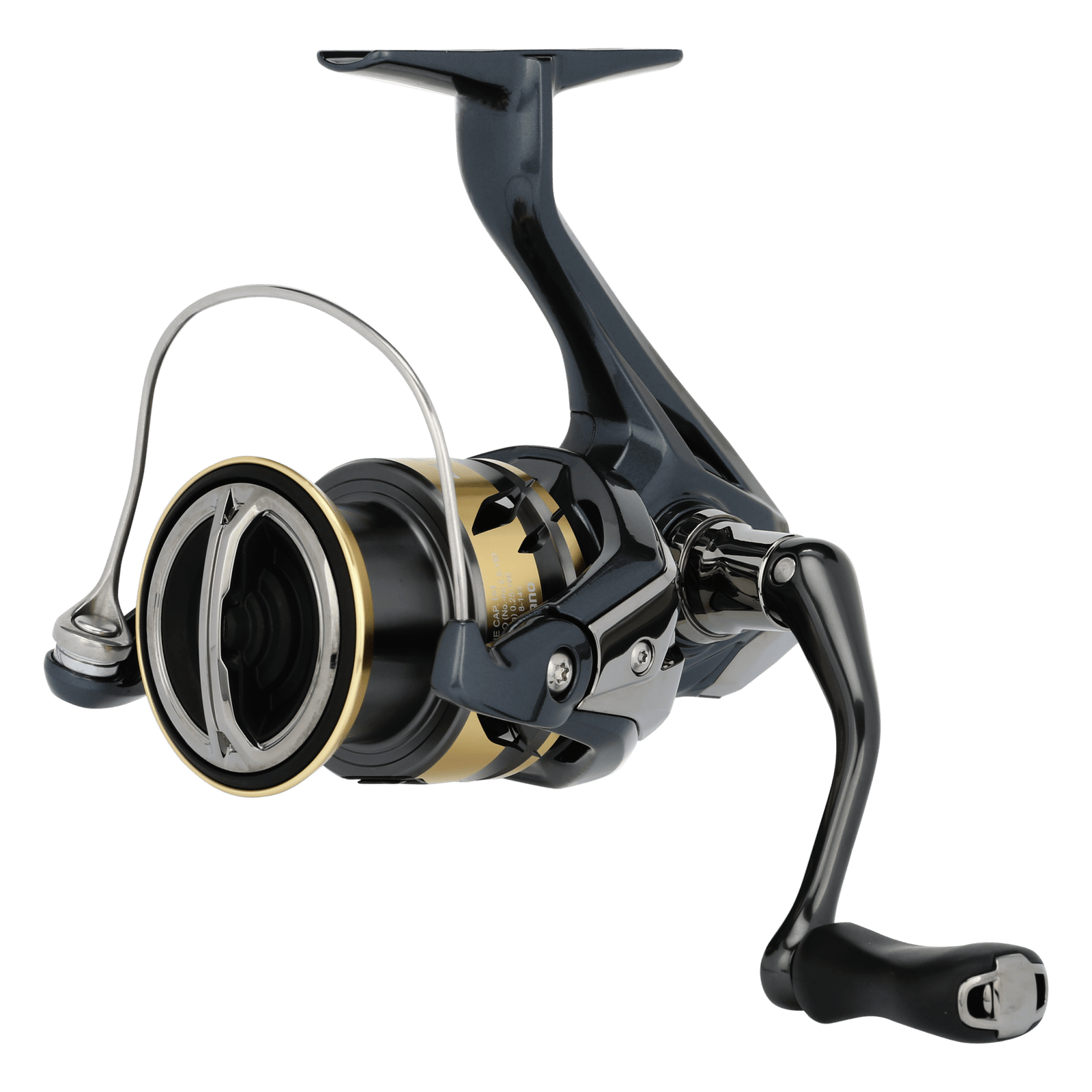

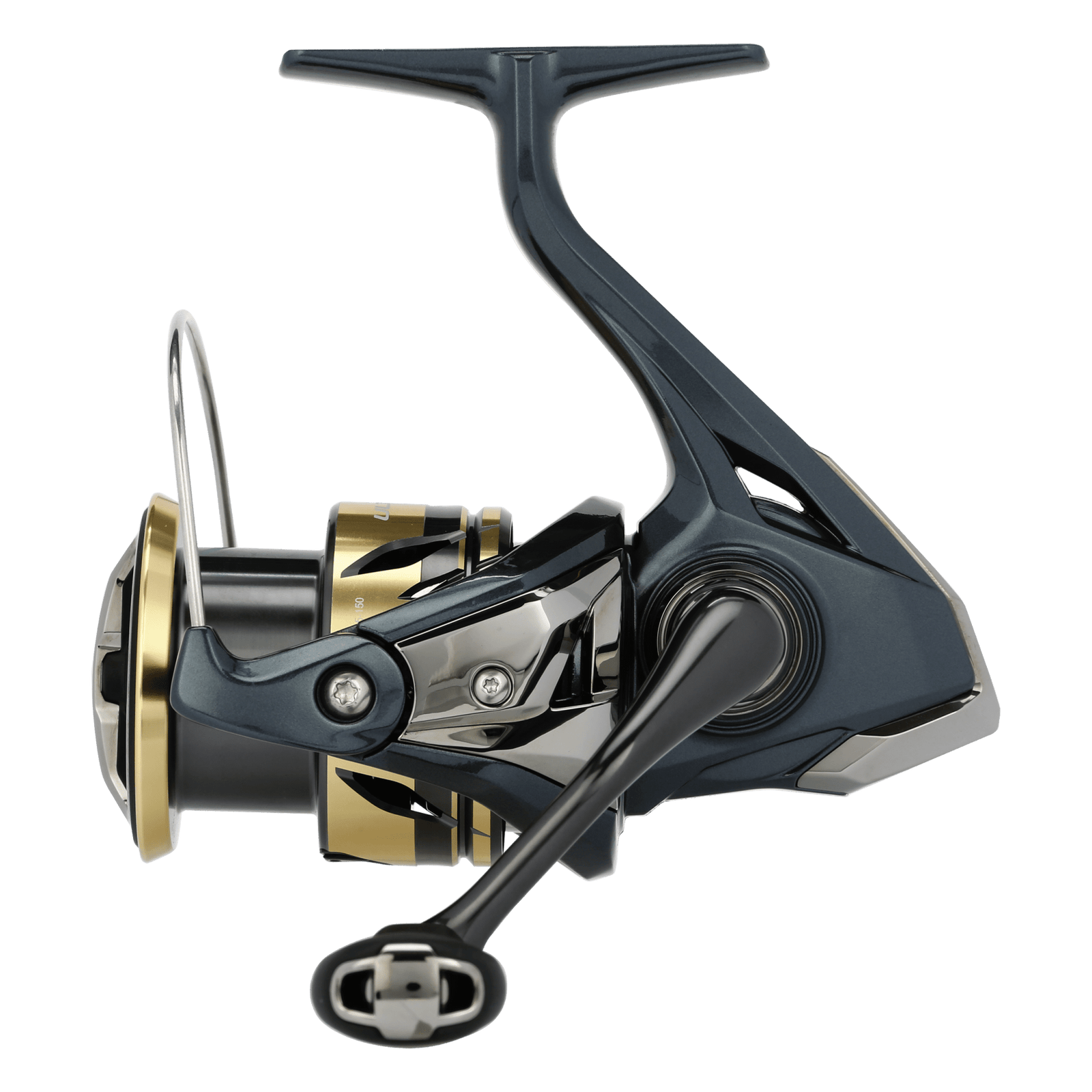

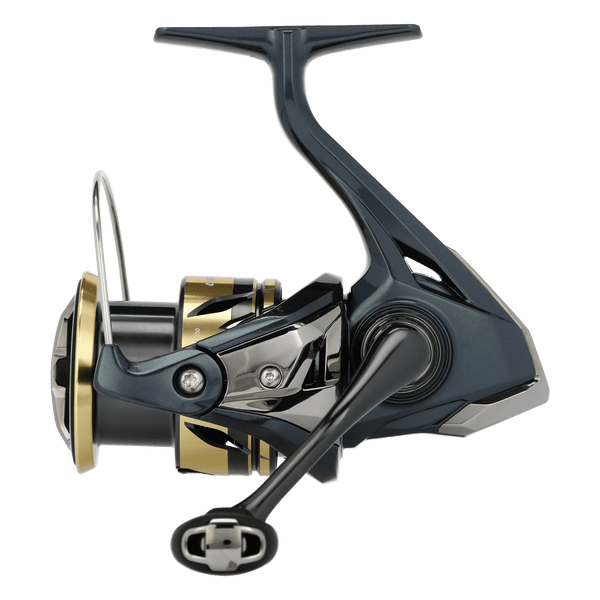

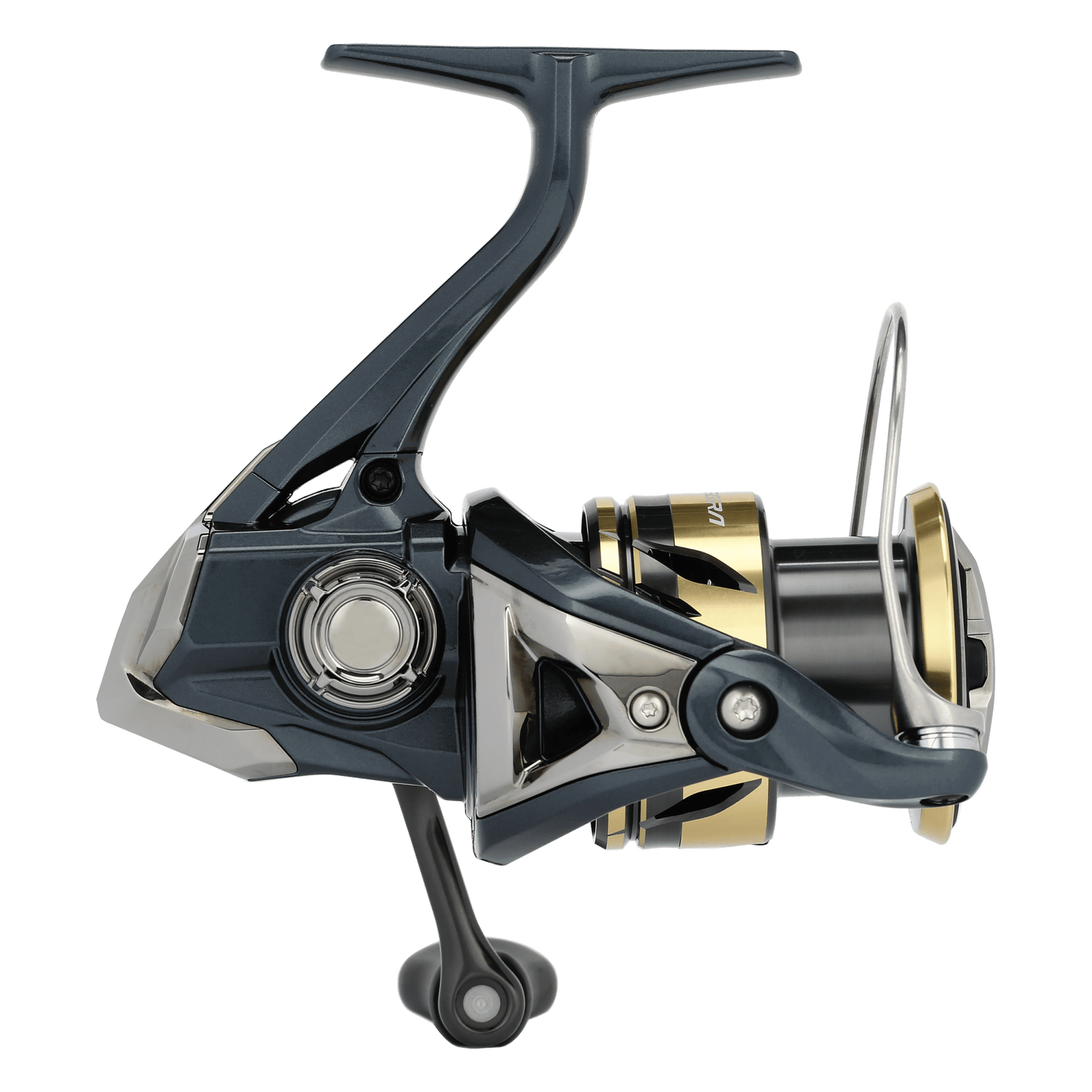

ULT2500HGD
SKU: ULT2500HGD
Specifications
- Bearings
- 5/1
- Drag Material
- Felt
- Drag Type
- Front Drag
- Gear Ratio
- 5.8
- Max Drag
- 20
- Mono Line Capacity
- 8-140, 10-120
- PowerPro Line Capacity
- 10-150, 15-145, 30-100
- Retrieve per Crank
- 34
Overview
Anti-Twist Fin
Shimano designed the Anti-Twist Fin for enhanced line management resulting in more effective fishing. The flexible polymer fin is installed near the line roller. This maintains line tension to reduce sagging and prevents the line from falling off the bottom of the spool or wrapping around the spool in an uneven manner.
Cross Carbon Drag Spinning
The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
G-Free Body
G-Free Body technology has been developed to shift the reel's center of gravity closer to the rod. By moving the center of gravity closer to the angler’s hand, the G-Free Body helps to reduce fatigue and enhance casting comfort.
HAGANE Gear
With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels. Shimano, through the application of state-of-the-art technologies, gives anglers the long-lasting smoothness and pleasure that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication, instead the entire surface is calculated in minute detail by special 3D-design and then formed by Shimano's cold-forging technology. The result is assured resilience. HAGANE Gear is the fruit of Shimano's inexhaustible pursuit for durability — the strength and power of forged metal continues to represent the fundamental concept of Shimano reels.
HAGANE
HAGANE is a Shimano reel design concept created to withstand continual use and extreme abuse. HAGANE is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering. HAGANE is for all anglers.
Infinity Drive | Spinning Reels
The Infinity Drive structure is an advanced structure that creates exceptionally light winding. The main shaft, which had previously been supported by the pinion gear, is now supported by a new and unique low-friction bushing that significantly decreases frictional resistance. In addition, the main shaft has undergone a proprietary surface treatment and special processing to drastically reduce rotational torque, constructing a reel that can actively wind even under heavy loads.
InfinityXross
InfinityXross provides superior gear durability through industry-leading design and cutting-edge manufacturing technology. Advancements in the gear tooth design improve the surface contact and meshing between the drive gear and pinion gear. This revolutionary design efficiently distributes the load placed on the gear tooth surface across a wider area to prevent damage from stress points while significantly improving overall gear durability.
Long Stroke Spool
The Long Stroke Spool has a longer stroke compared to conventional spool designs. This ultimately produces a smoother line lay during retrieval and translates into increased casting distance for anglers.
MicroModule Gear II
Shimano's exclusive manufacturing technology further advances MicroModule Gear II with a state-of-the-art gear-tooth surface design. The surfaces of the drive gear and pinion gear have been analyzed and updated from the ground up in Shimano’s pursuit of perfection to further improve the smooth gear feeling and reducing sound.
One-Piece Bail
One-Piece Bail allows the line to travel unimpeded to the line roller. The seamless design reduces friction and decreases the chance of tangles or the line catching on the bail arm.
S A-RB Spinning
S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.
SilentDrive
SilentDrive technology benefits from a total redesign of all functional parts focused on the drive gear, worm shaft and other parts. The goal: remove unnecessary noise and vibration. In doing so, the overall tolerances are improved to a micron level, ultimately creating an overall quieter and smoother reel operation.
X PROTECT
For medium and small general-purpose spinning reels, which require lighter spinning, we focused on a non-contact structure that does not compromise the lightness of the spinning. In addition to conventional water-repellent treatment, a labyrinth structure that suppresses water penetration is combined to achieve high water-resistant performance despite the non-contact nature of the structure. It is used in the stopper bearing section and line roller section.
X-Ship Spinning
X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.
