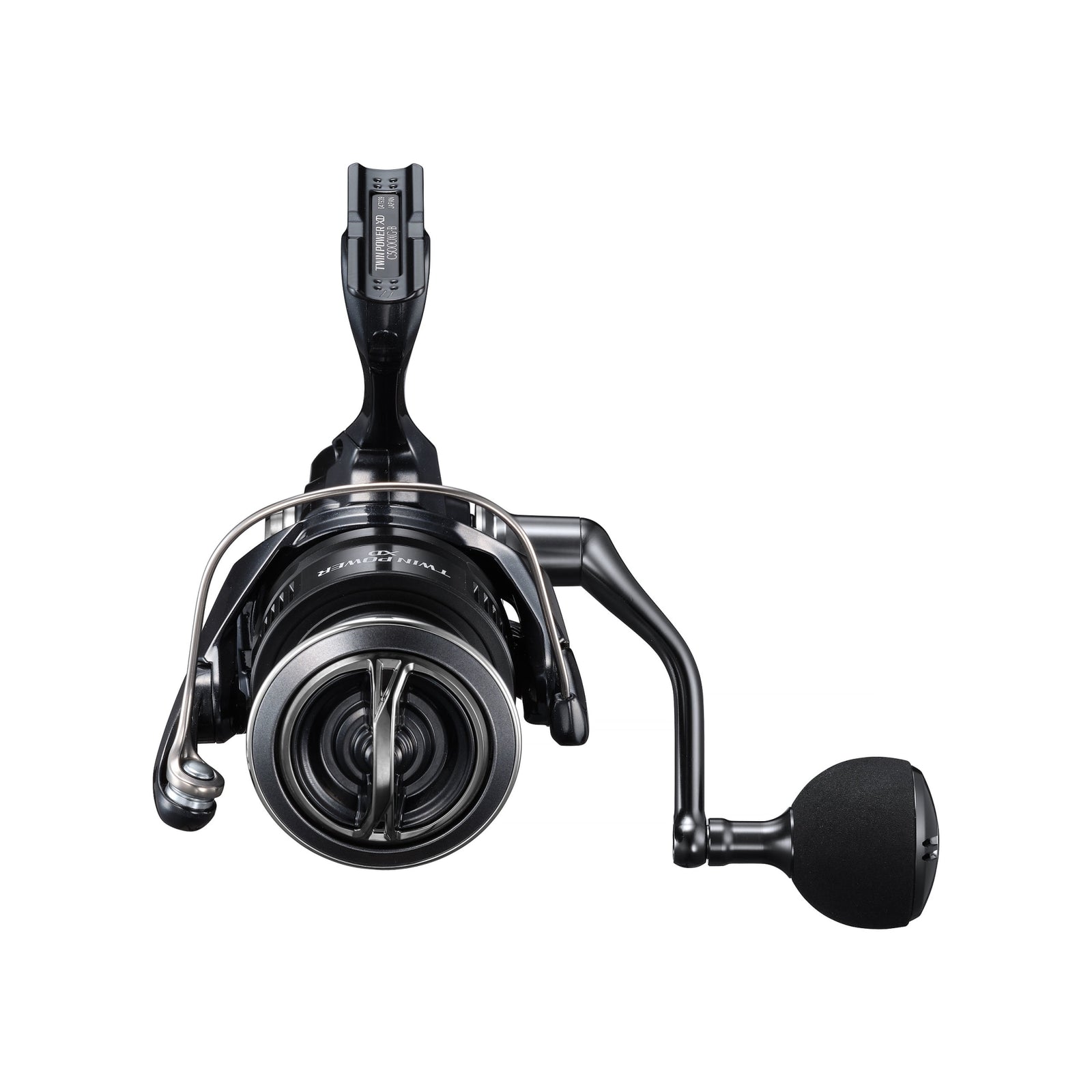

others_3 image of product TWINPOWER XD FB

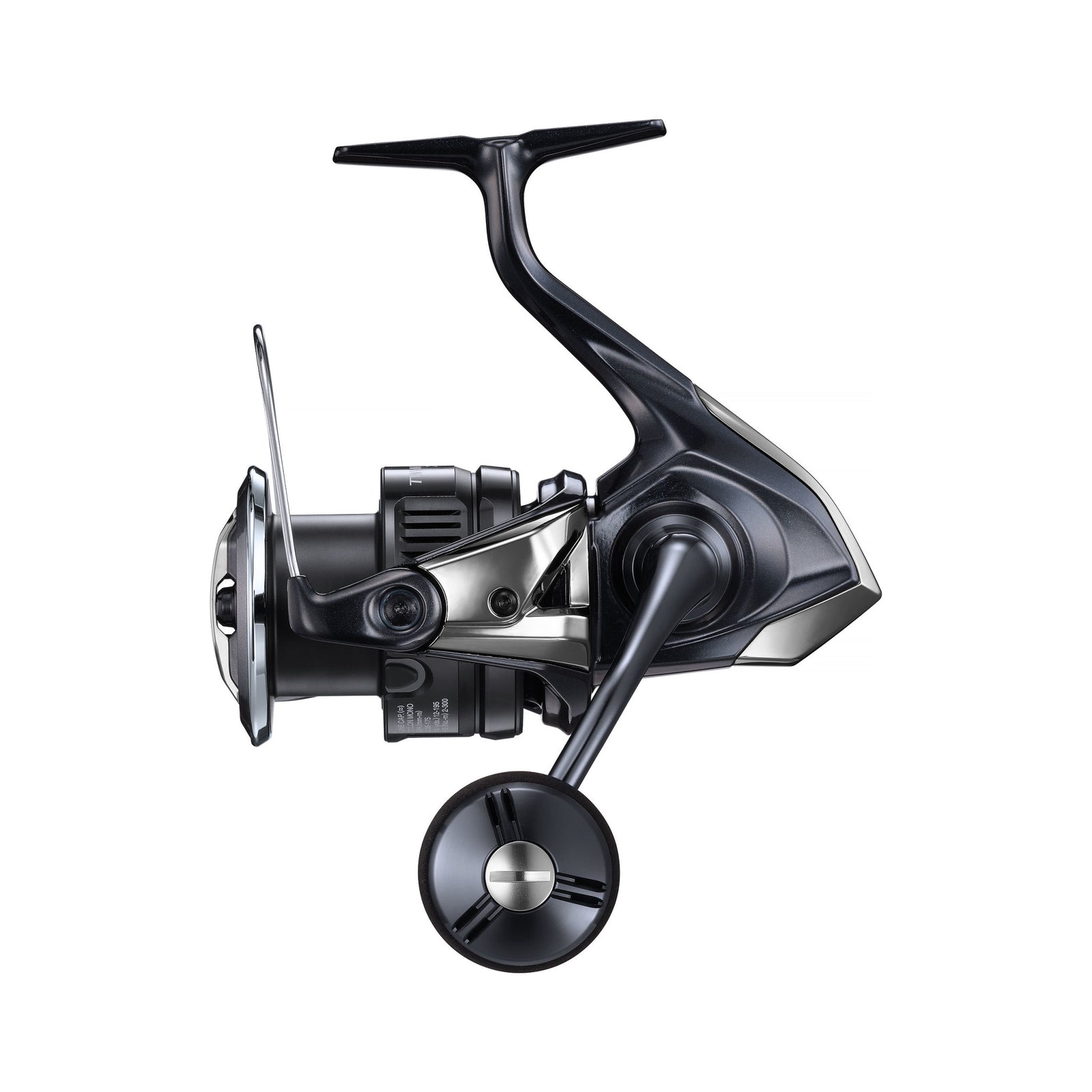

TWINPOWER XD FB

$514.99 USD

See Buying Options

MGL Rotor
Infinity Drive
InfinityXross
DuraCross Drag
InfinityLoop
Anti-Twist Fin

Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

1 Year Warranty

30 Day Free Returns

Flat Rate Shipping

Choose Your Product

Quick order table
Model	Gear Ratio	Mono Line Capacity	PowerPro Line Capacity	Bearings	Weight	Price
TPXDC3000XGFB SKU: TPXDC3000XGFB Out of stock	6.4	6-230, 8-170, 10-140	10-200, 20-140, 40-105	10/1	7.1oz	$514.99

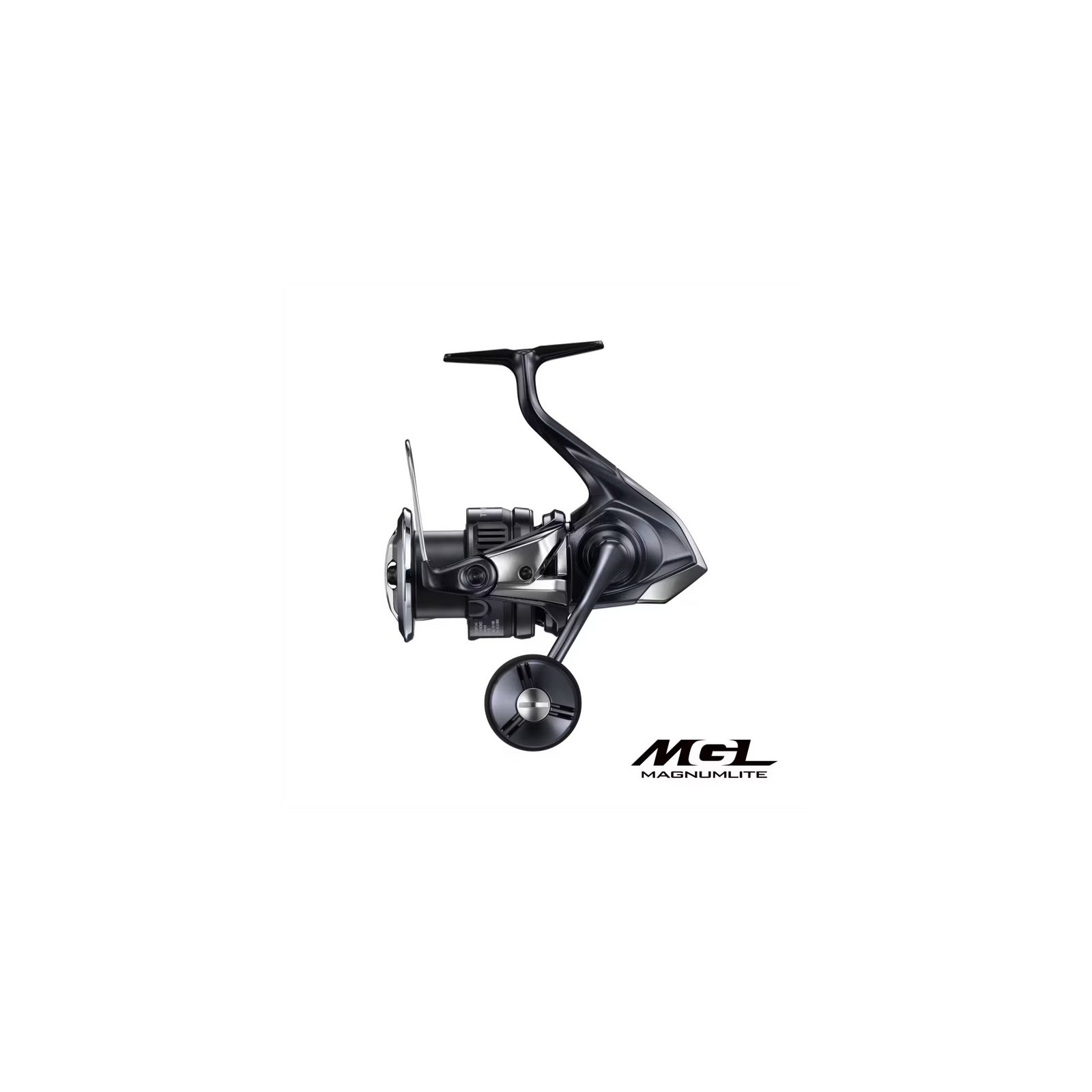

TPXDC5000XGFB SKU: TPXDC5000XGFB Out of stock	6.2	12-195, 14-165	20-260, 30-235, 40-185	10/1	8.6oz	$544.99
TPXD4000XGFB SKU: TPXD4000XGFB Out of stock	6.2	10-200, 12-160	15-230, 30-180, 40-140	10/1	8.6oz	$534.99

TPXDC3000XGFB

$514.99

Gear Ratio: 6.4
Mono Line Capacity: 6-230, 8-170, 10-140
PowerPro Line Capacity: 10-200, 20-140, 40-105
Bearings: 10/1
Weight: 7.1oz

More info

TPXDC5000XGFB

$544.99

Gear Ratio: 6.2
Mono Line Capacity: 12-195, 14-165
PowerPro Line Capacity: 20-260, 30-235, 40-185
Bearings: 10/1
Weight: 8.6oz

More info

TPXD4000XGFB

$534.99

Gear Ratio: 6.2
Mono Line Capacity: 10-200, 12-160
PowerPro Line Capacity: 15-230, 30-180, 40-140
Bearings: 10/1
Weight: 8.6oz

More info

Overview

The toughest offering in Shimano's MagnumLite series of spinning reels, the all-new TwinPower XD FB incorporates Shimano's latest premium spinning reel technologies to elevate inshore angling performance. Constructed from CI4+ carbon-reinforced resin, the MGL Rotor provides light and sensitive rotation for increased precision and lure control during technical inshore angling. With a focus on improved drag performance and an enhanced reeling experience, the new TwinPower XD FB adds Shimano's DuraCross technology for improved drag smoothness and longevity while also incorporating InfinityDrive and InfinityXross technologies for increased winding power and enhanced gear durability. Built to endure harsh saltwater environments, a new X-Protect design reduces reeling noise and improves bearing longevity by draining water to the outermost point of the reel. The addition of Shimano's InfinityLoop technology enhances line lay to improve casting performance and increase drag consistency by reducing drag spikes. A reel built for toughness without sacrificing sensitivity, the TwinPower XD FB has no equal for inshore anglers.

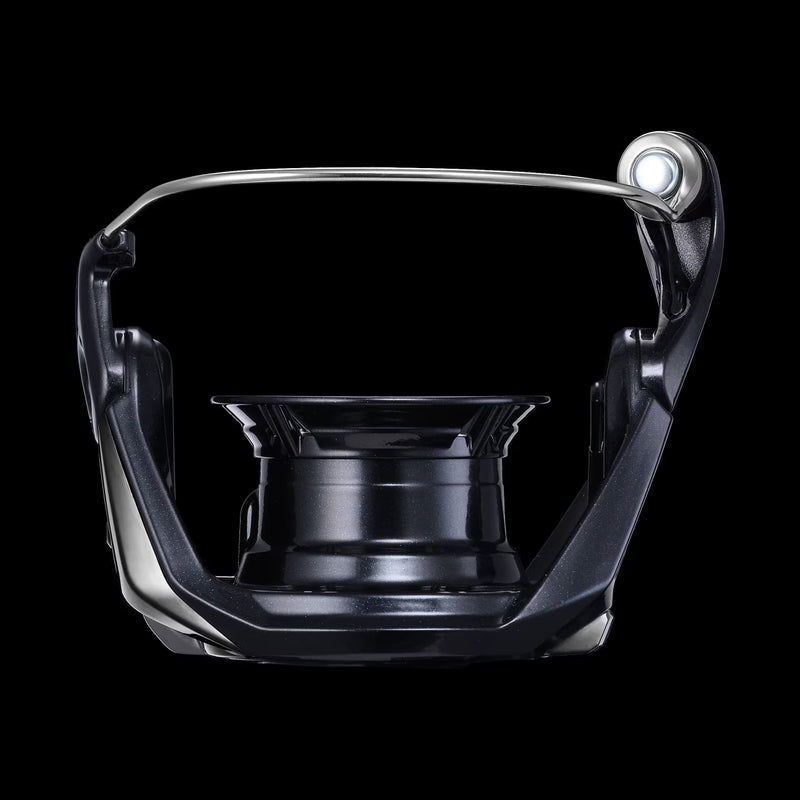

MGL ROTOR

MGL ROTOR adopts asymmetrical rotor construction and seeks to improve operability and sensitivity, achieving a different dimension of rotational lightness. Furthermore, the line roller is made lighter, the bail is made of titanium, and the rotor wall thickness is optimally arranged to successfully reduce rotational inertia.

X-PROTECT

In addition to conventional water repellent treatment, a labyrinth structure that suppresses water penetration is combined to achieve high waterproof performance despite the non-contact. Adopts for stopper bearings section, line roller section, and others.

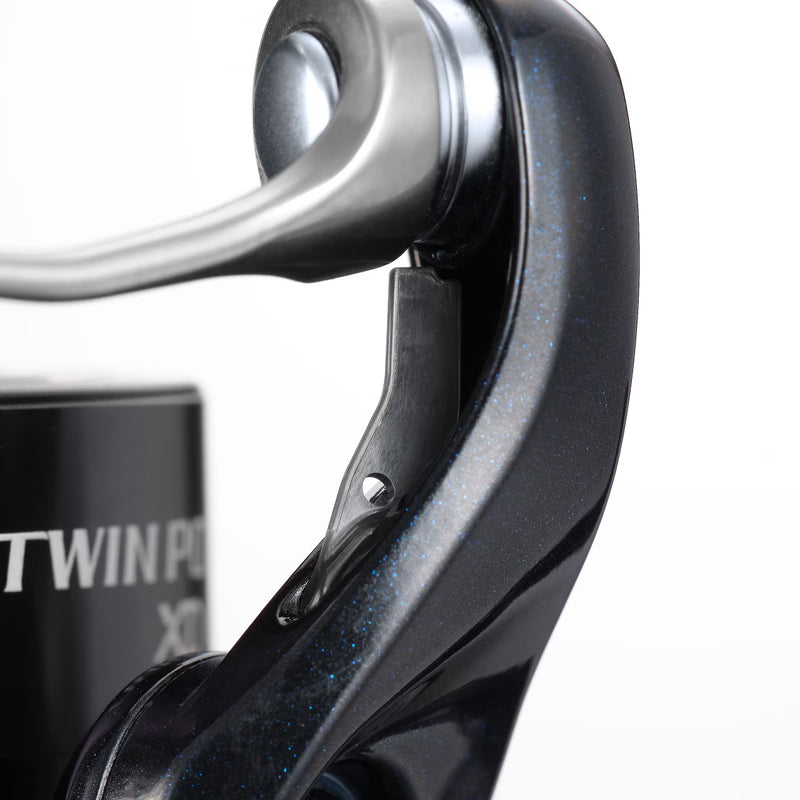

ANTI TWIST FIN

ANTITWISTFIN reduce line slack and prevent line from falling off the bottom of the spool, and also reduce the phenomenon of line wrapping around the spool with twisting.

MGL ROTOR

X-PROTECT

ANTI TWIST FIN

ANTITWISTFIN reduce line slack and prevent line from falling off the bottom of the spool, and also reduce the phenomenon of line wrapping around the spool with twisting.

[lifestyle] image of product TWINPOWER XD FB

Anti-Twist Fin

Shimano designed the Anti-Twist Fin for enhanced line management resulting in more effective fishing. The flexible polymer fin is installed near the line roller. This maintains line tension to reduce sagging and prevents the line from falling off the bottom of the spool or wrapping around the spool in an uneven manner.

DuraCross

DuraCross provides smooth and reliable drag performance with incredible durability. Constructed to enhance overall durability, this revolutionary drag washer incorporates cutting-edge materials woven in a unique pattern compared to conventional drag washers. Without sacrificing a smooth drag feel, this new material is greater than 10x more durable for improved drag performance.

G-Free Body

G-Free Body technology has been developed to shift the reel's center of gravity closer to the rod. By moving the center of gravity closer to the angler’s hand, the G-Free Body helps to reduce fatigue and enhance casting comfort.

HAGANE Body Spinning

The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.

HAGANE Gear

With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels. Shimano, through the application of state-of-the-art technologies, gives anglers the long-lasting smoothness and pleasure that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication, instead the entire surface is calculated in minute detail by special 3D-design and then formed by Shimano's cold-forging technology. The result is assured resilience. HAGANE Gear is the fruit of Shimano's inexhaustible pursuit for durability — the strength and power of forged metal continues to represent the fundamental concept of Shimano reels.

HAGANE

HAGANE is a Shimano reel design concept created to withstand continual use and extreme abuse. HAGANE is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering. HAGANE is for all anglers.

Infinity Drive | Spinning Reels

The Infinity Drive structure is an advanced structure that creates exceptionally light winding. The main shaft, which had previously been supported by the pinion gear, is now supported by a new and unique low-friction bushing that significantly decreases frictional resistance. In addition, the main shaft has undergone a proprietary surface treatment and special processing to drastically reduce rotational torque, constructing a reel that can actively wind even under heavy loads.

InfinityLoop

InfinityLoop technology delivers exceptional casting performance by drastically reducing friction on the line leaving the spool. Advancements in the internal structure and design extend the spool's oscillation to enable the spool to move up and down at an extremely low speed. This technology creates a precise winding pattern with less overlap that significantly reduces friction as the line leaves the spool during a cast. The result is smooth and exceptional casting performance, especially of light lures.

InfinityXross

InfinityXross provides superior gear durability through industry-leading design and cutting-edge manufacturing technology. Advancements in the gear tooth design improve the surface contact and meshing between the drive gear and pinion gear. This revolutionary design efficiently distributes the load placed on the gear tooth surface across a wider area to prevent damage from stress points while significantly improving overall gear durability.

Long Stroke Spool

The Long Stroke Spool has a longer stroke compared to conventional spool designs. This ultimately produces a smoother line lay during retrieval and translates into increased casting distance for anglers.

MGL Rotor

The new MGL Rotor produces unprecedented light rotation within the MagnumLite family of spinning reels. Engineers redesigned the previously symmetrical MagnumLite rotor to be asymmetrical and relocated the bail arm mechanism to the opposite side of the line roller to improve the overall balance of the rotor. Combined with a lightweight line roller, titanium bail and optimum arrangement of rotor thickness, the new MGL rotor achieves up to a 14% reduction in rotational inertia to increase sensitivity to unprecedented levels. But the evolution of the MGL rotor is not limited to just reduced weight. The MGL rotor rigidity is up to 30% higher than conventional models and contributes to enhanced drag performance.

MicroModule Gear II

Shimano's exclusive manufacturing technology further advances MicroModule Gear II with a state-of-the-art gear-tooth surface design. The surfaces of the drive gear and pinion gear have been analyzed and updated from the ground up in Shimano’s pursuit of perfection to further improve the smooth gear feeling and reducing sound.

One-Piece Bail

One-Piece Bail allows the line to travel unimpeded to the line roller. The seamless design reduces friction and decreases the chance of tangles or the line catching on the bail arm.

Rigid Support Drag

By strengthening the spool support of the main shaft, the play and fluctuation of the spool during drag operation are suppressed. The Rigid Support Drag allows smooth and consistent drag delivery, even under high load.

S A-RB Spinning

S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.

SilentDrive

SilentDrive technology benefits from a total redesign of all functional parts focused on the drive gear, worm shaft and other parts. The goal: remove unnecessary noise and vibration. In doing so, the overall tolerances are improved to a micron level, ultimately creating an overall quieter and smoother reel operation.

X PROTECT

For medium and small general-purpose spinning reels, which require lighter spinning, we focused on a non-contact structure that does not compromise the lightness of the spinning. In addition to conventional water-repellent treatment, a labyrinth structure that suppresses water penetration is combined to achieve high water-resistant performance despite the non-contact nature of the structure. It is used in the stopper bearing section and line roller section.

X-Ship Spinning

X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.
